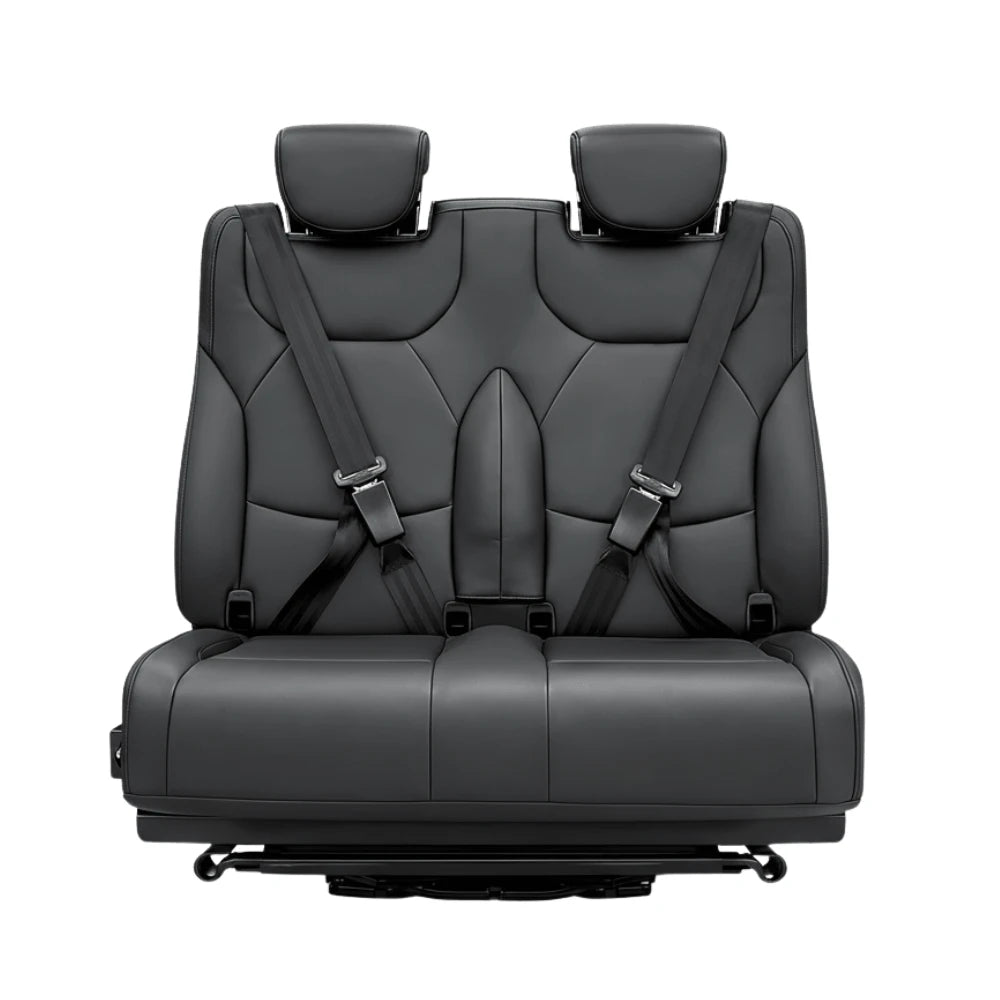

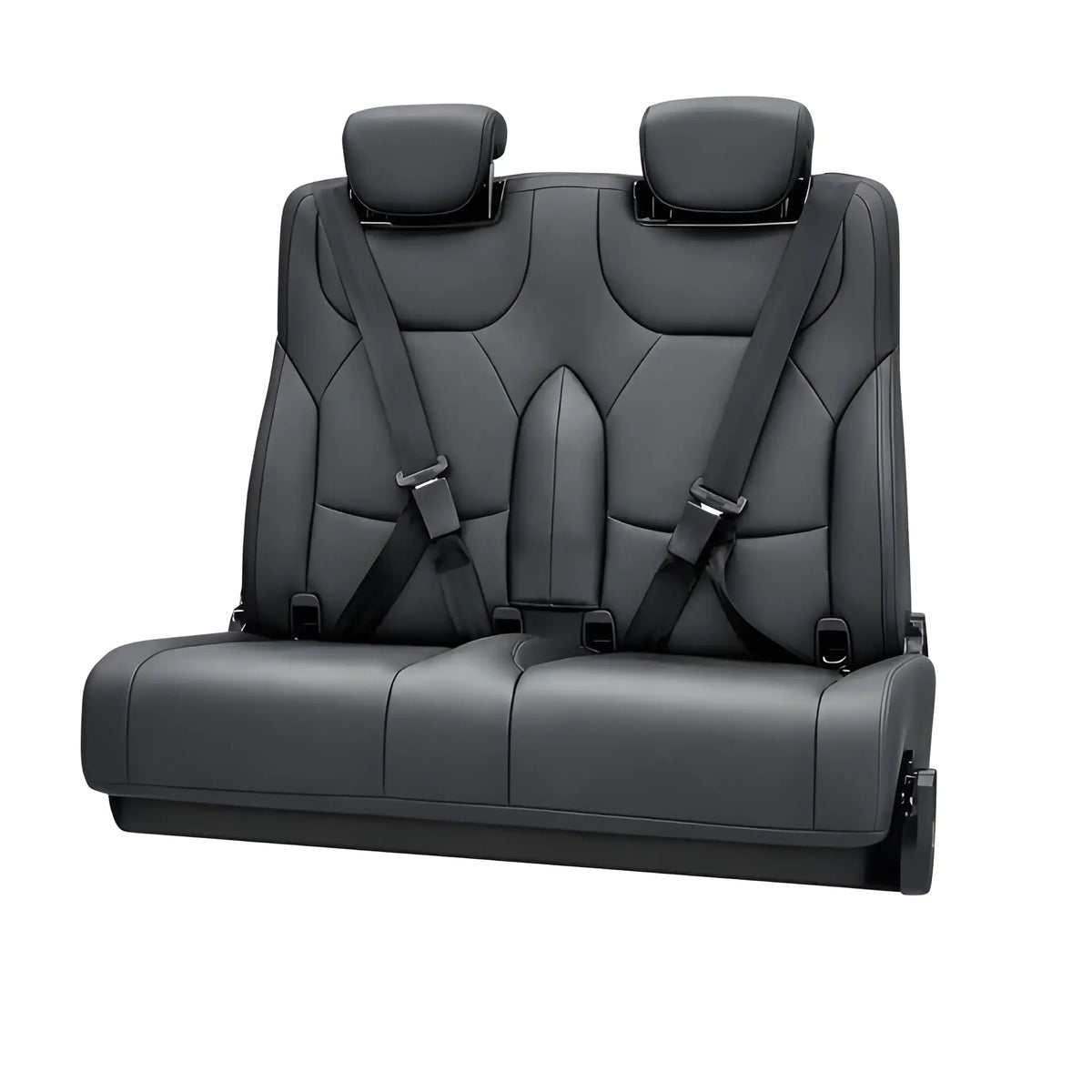

• Front view of the NovaLux Duo RS 35-inch swivel seat-to-bed with black upholstery, two headrests and integrated seat belts.

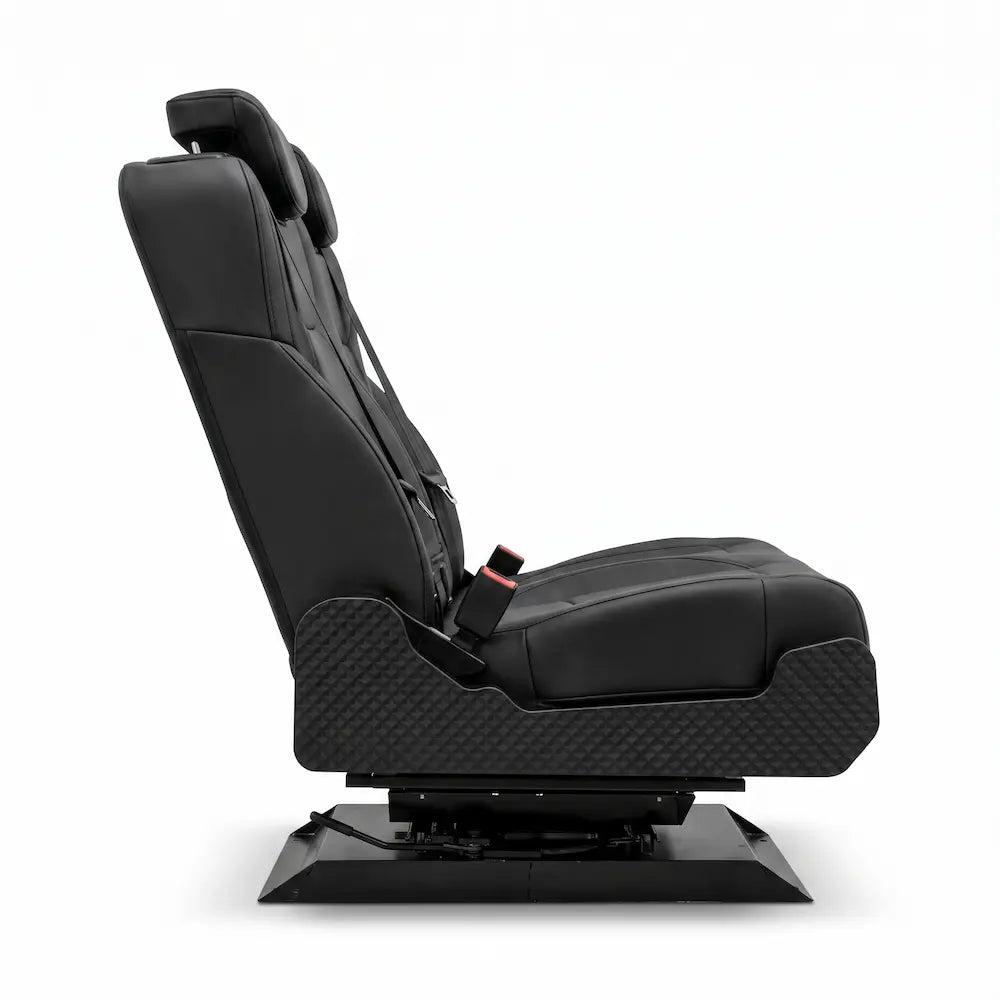

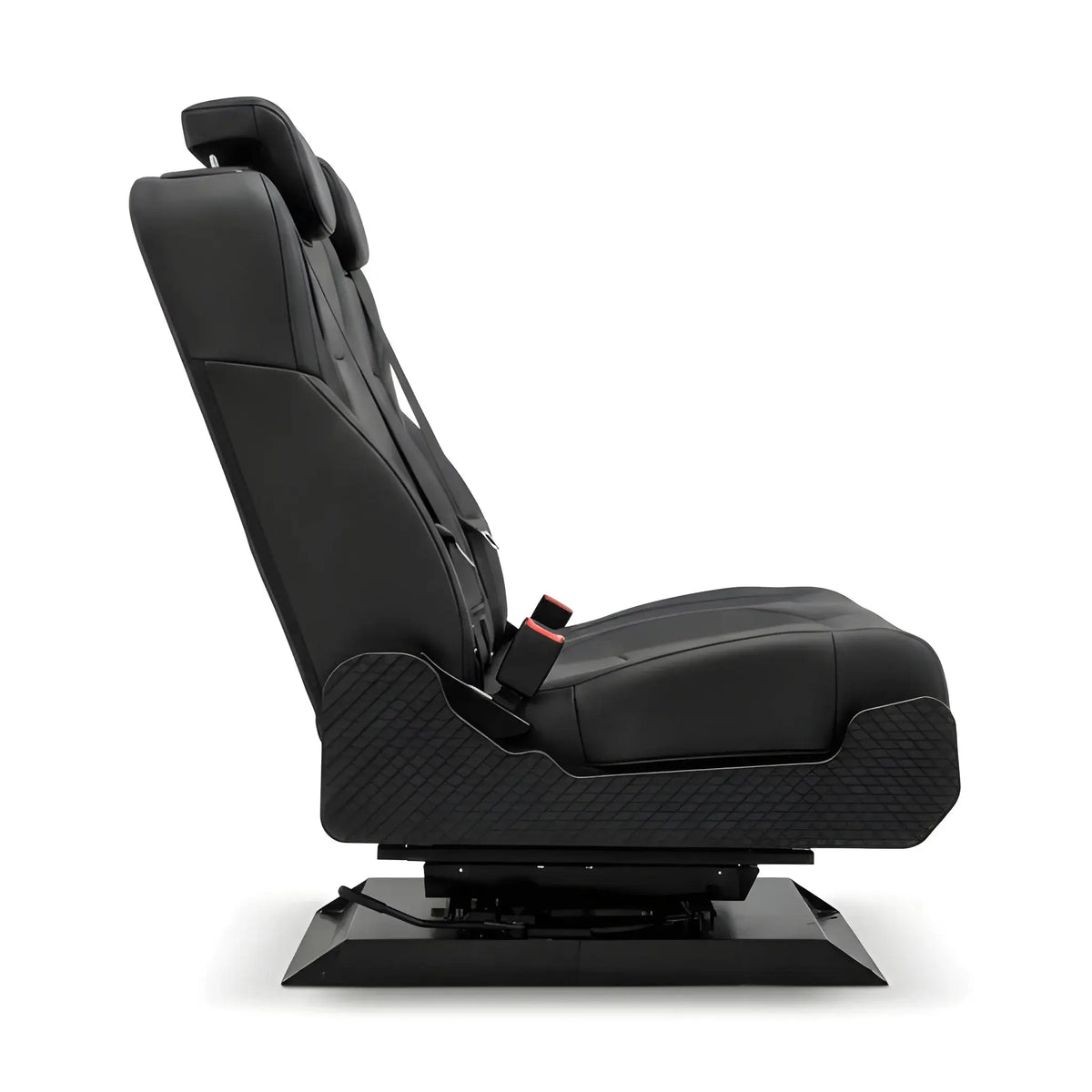

  • Side view of the NovaLux Duo RS convertible double van seat showing the upright backrest, seat cushion and swivel base.

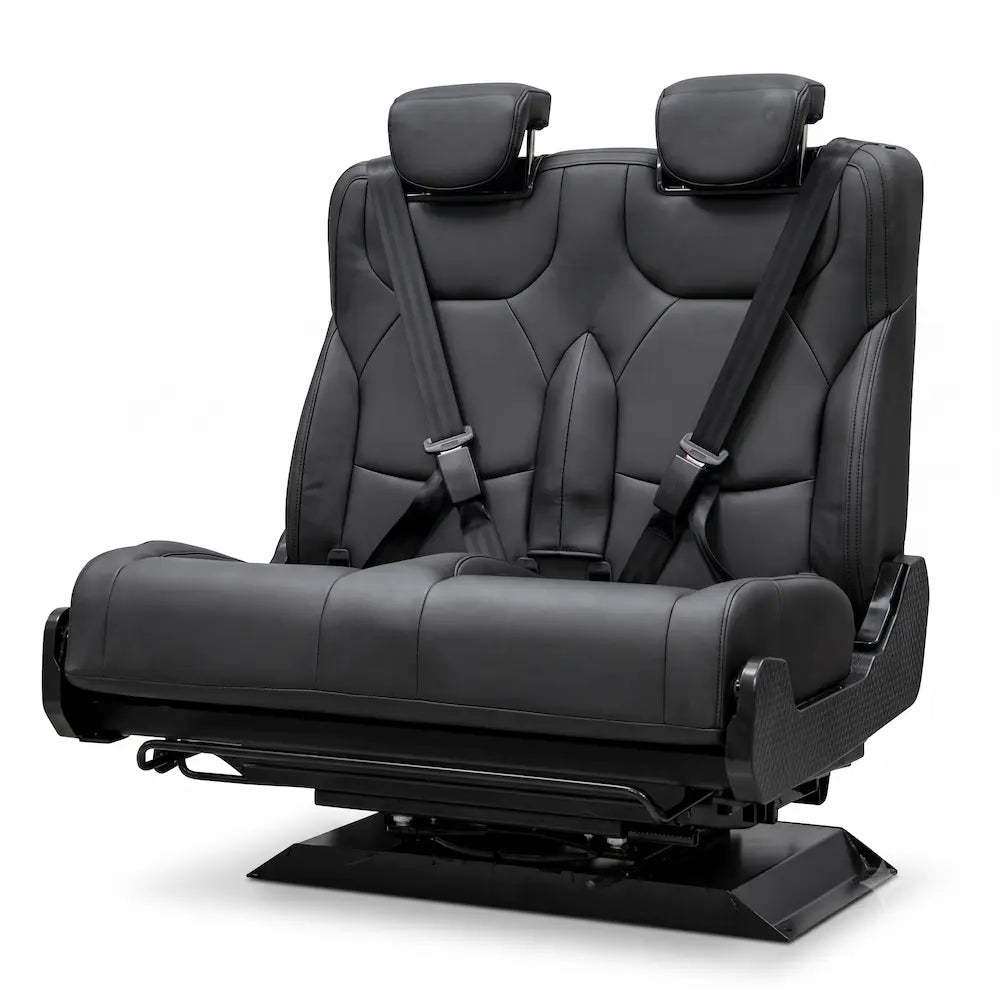

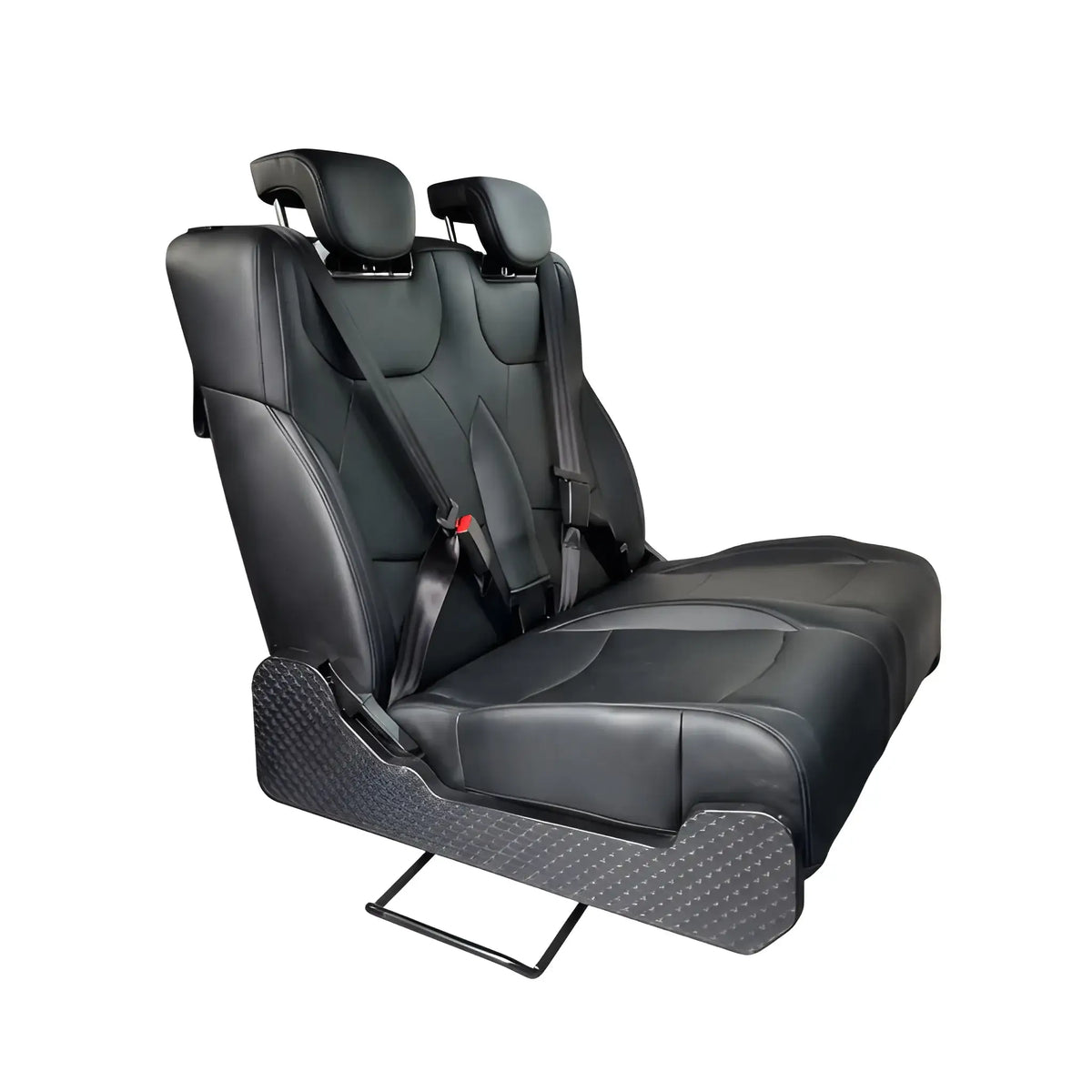

  • Three-quarter view of the NovaLux Duo RS double van seat with black cushions, shoulder belts and patterned side panels.

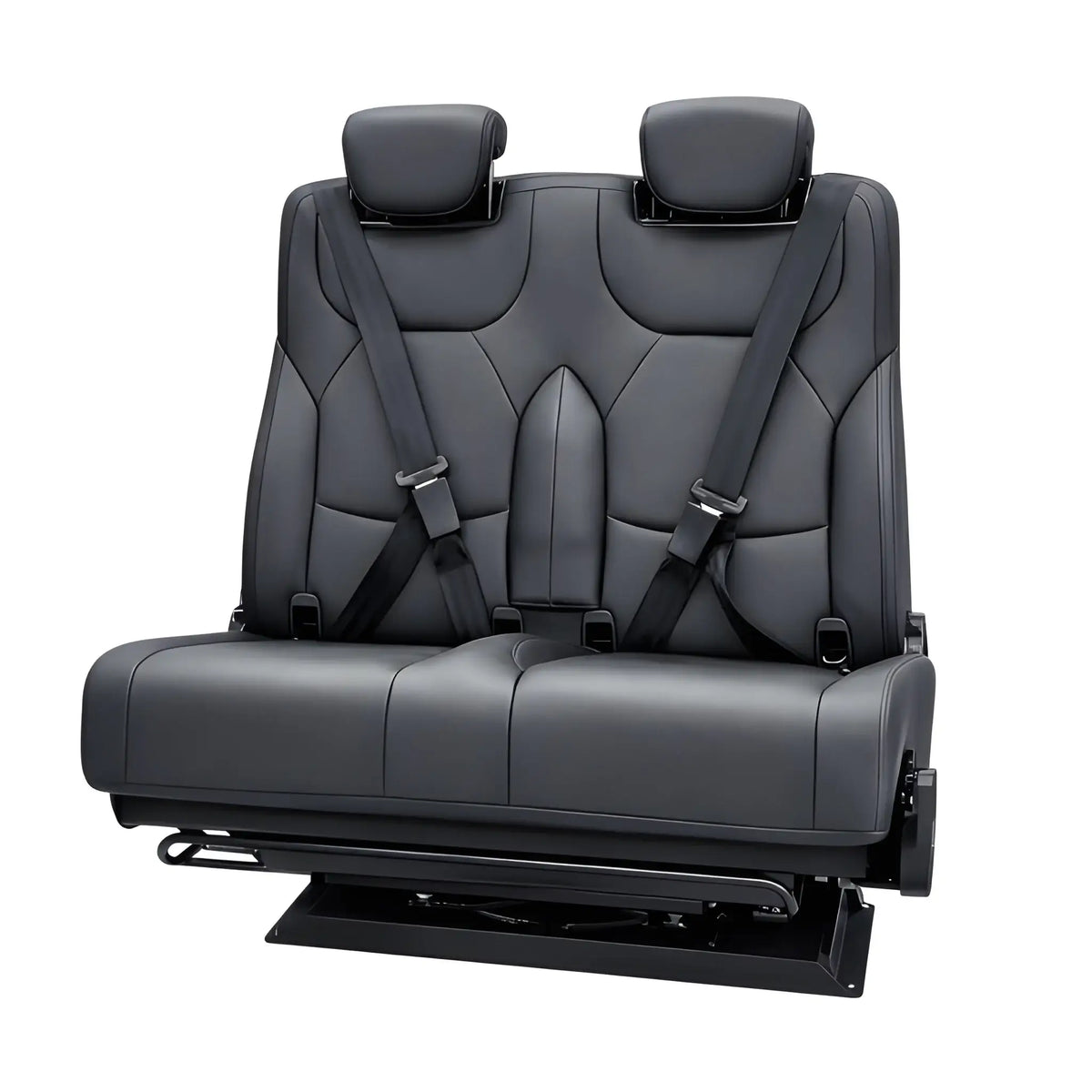

  • Front view of the NovaLux Duo RS double seat mounted on its swivel base, with the lower adjustment bar visible.

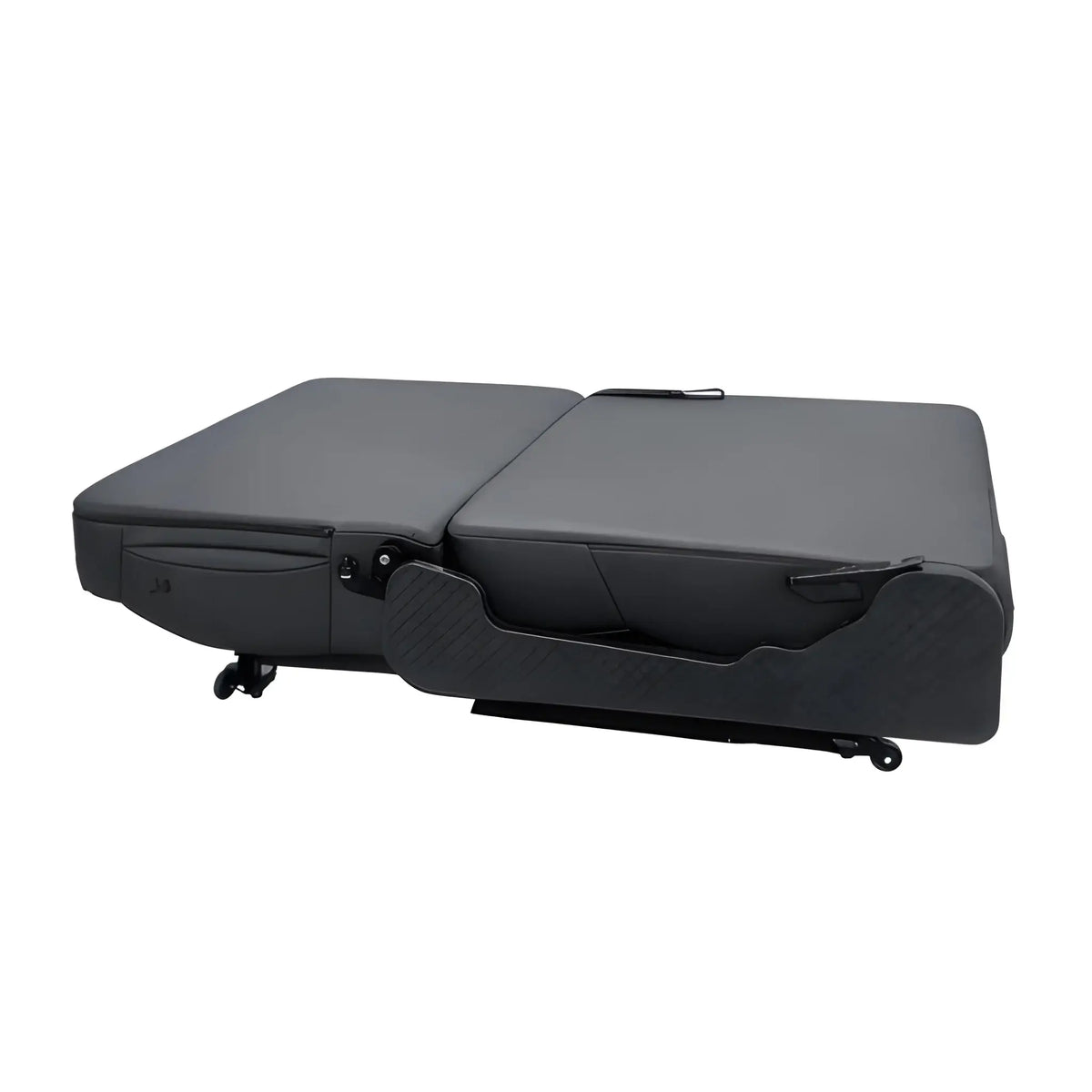

  • NovaLux Duo RS swivel seat-to-bed folded flat, showing the black sleeping surface and side folding hardware.

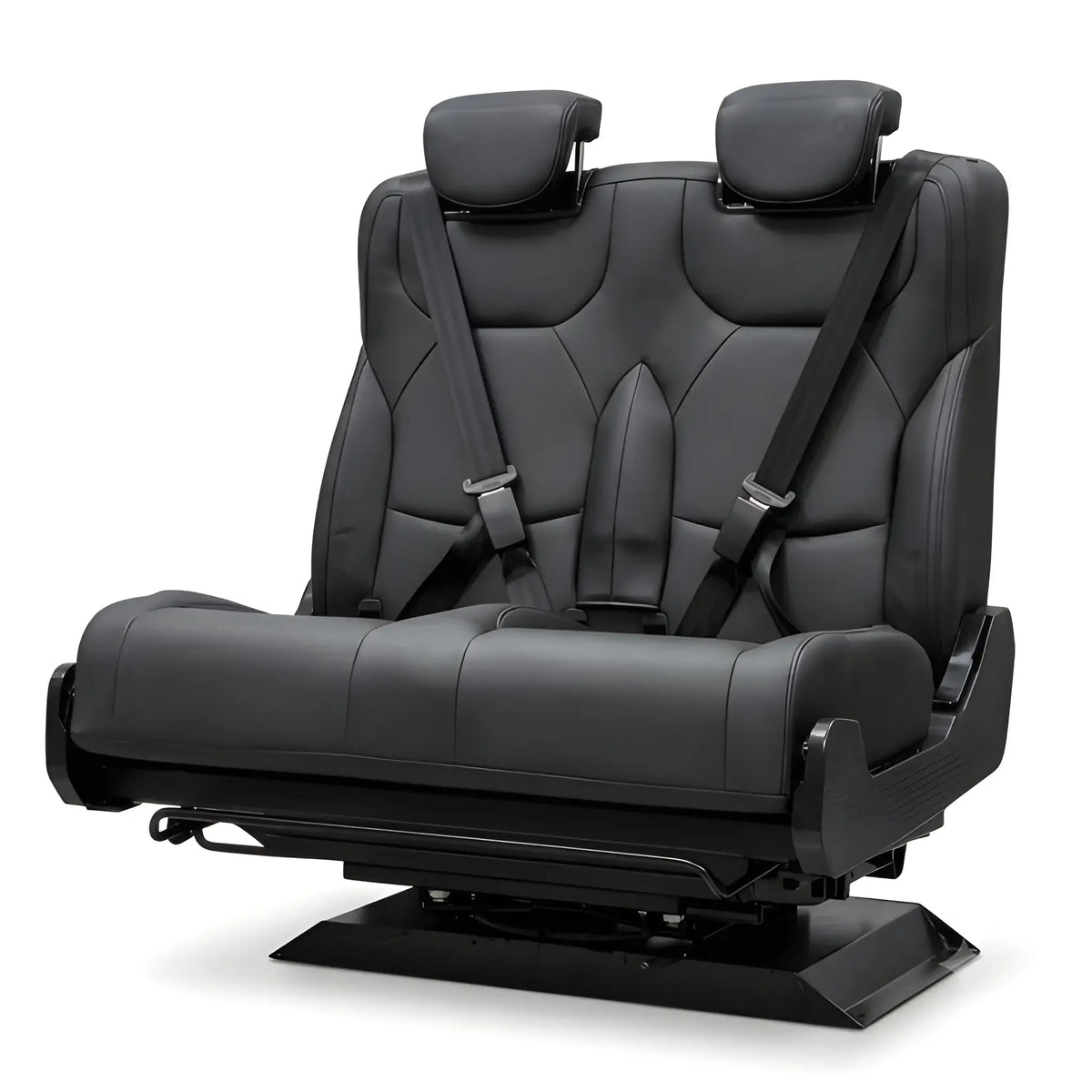

  • Angled front view of the NovaLux Duo RS double van seat with two headrests, integrated belts and mounting base.

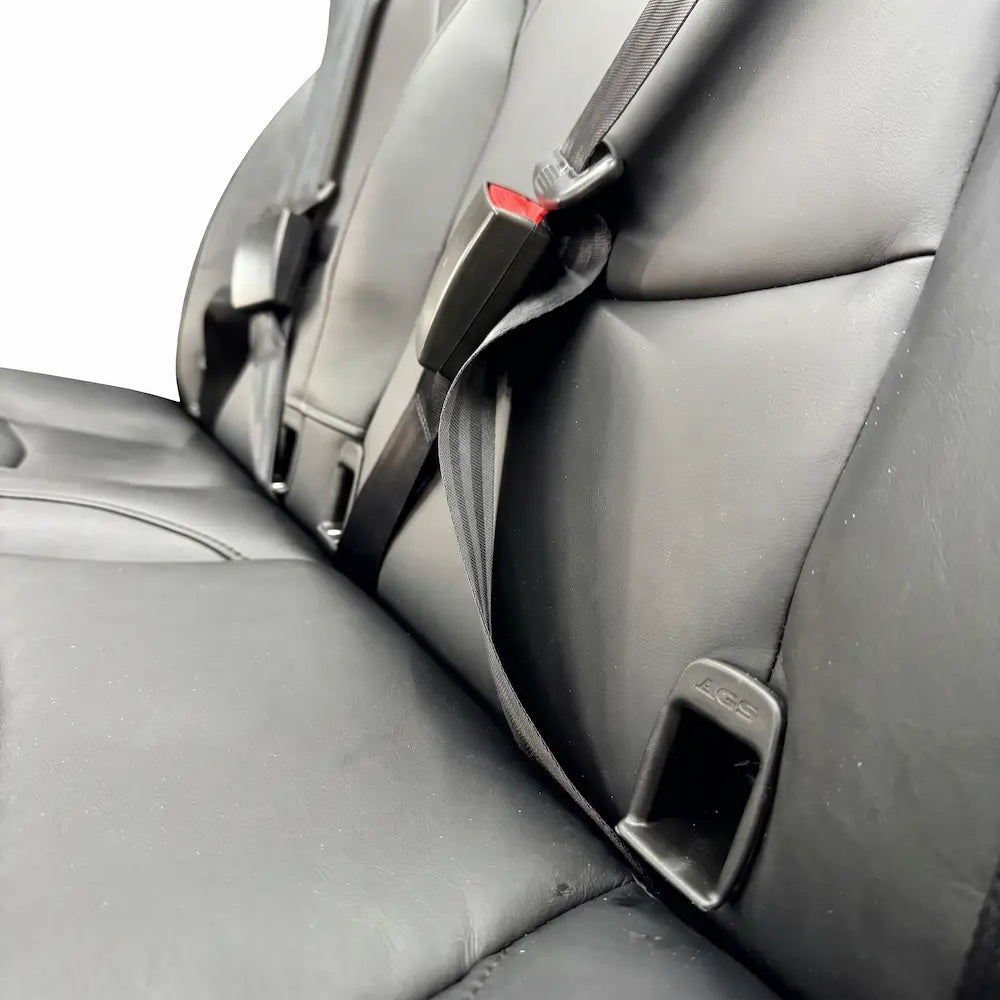

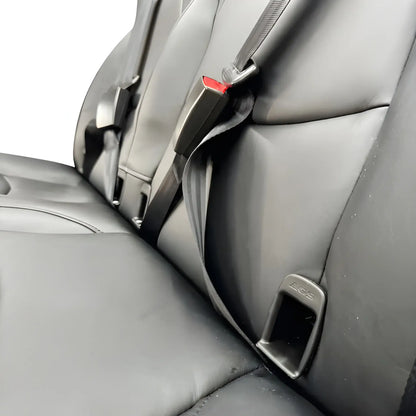

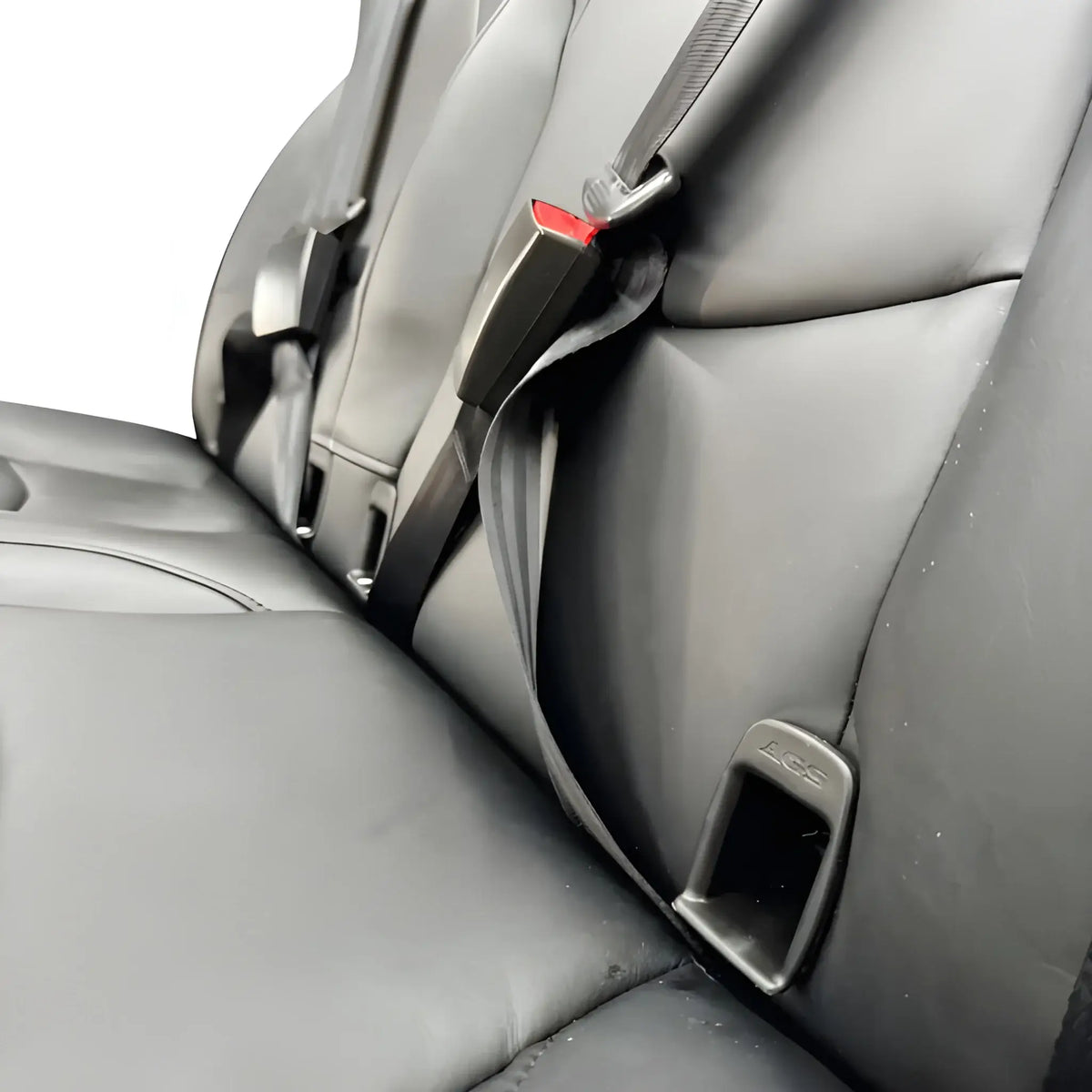

  • Close-up of the NovaLux Duo RS seat belt buckle, shoulder belt and stitched black upholstery.

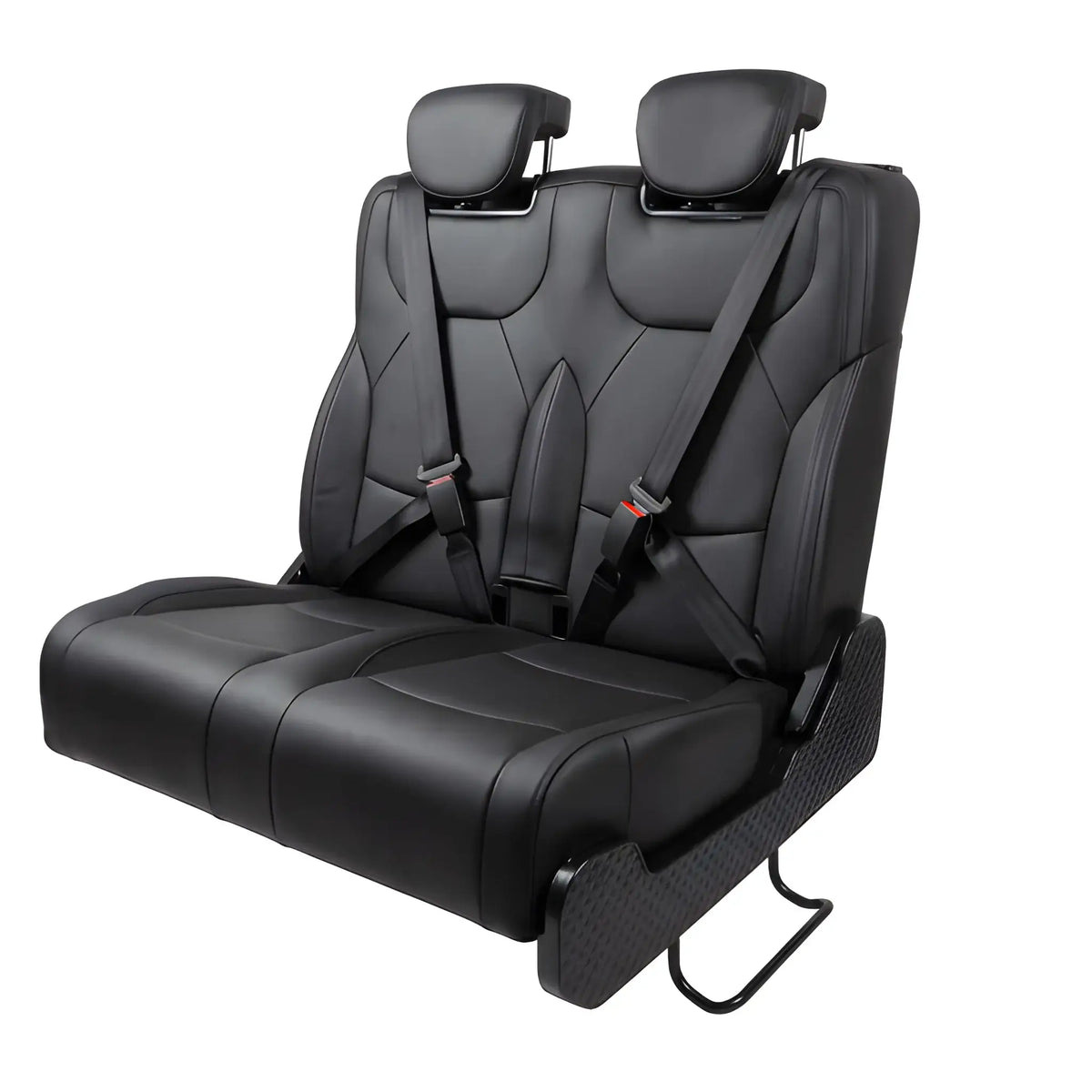

  • Angled view of the NovaLux Duo RS convertible double seat showing sculpted cushions, headrests and patterned side trim.

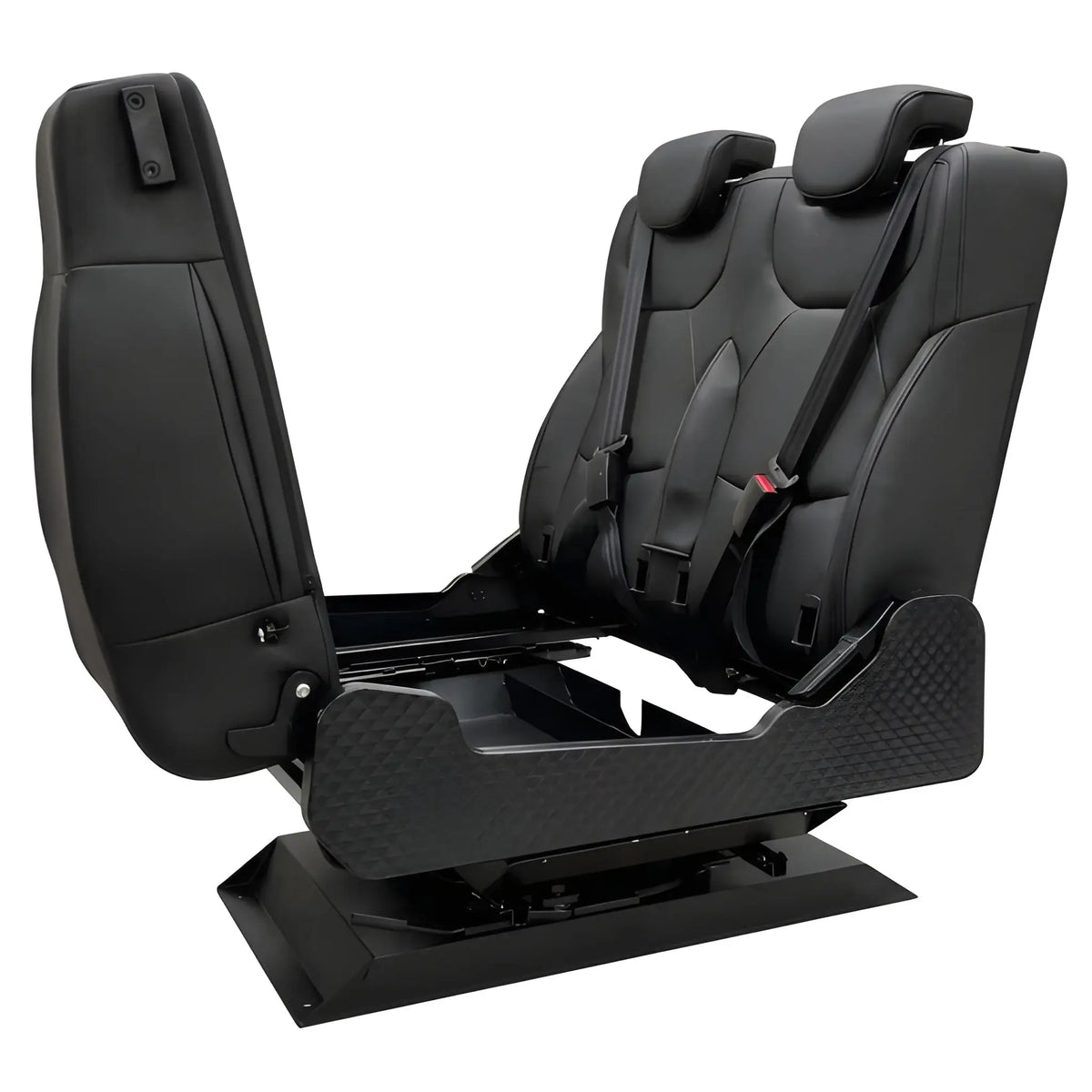

  • NovaLux Duo RS double seat with the seat cushion lifted, exposing the frame beneath the cushion above the swivel base.

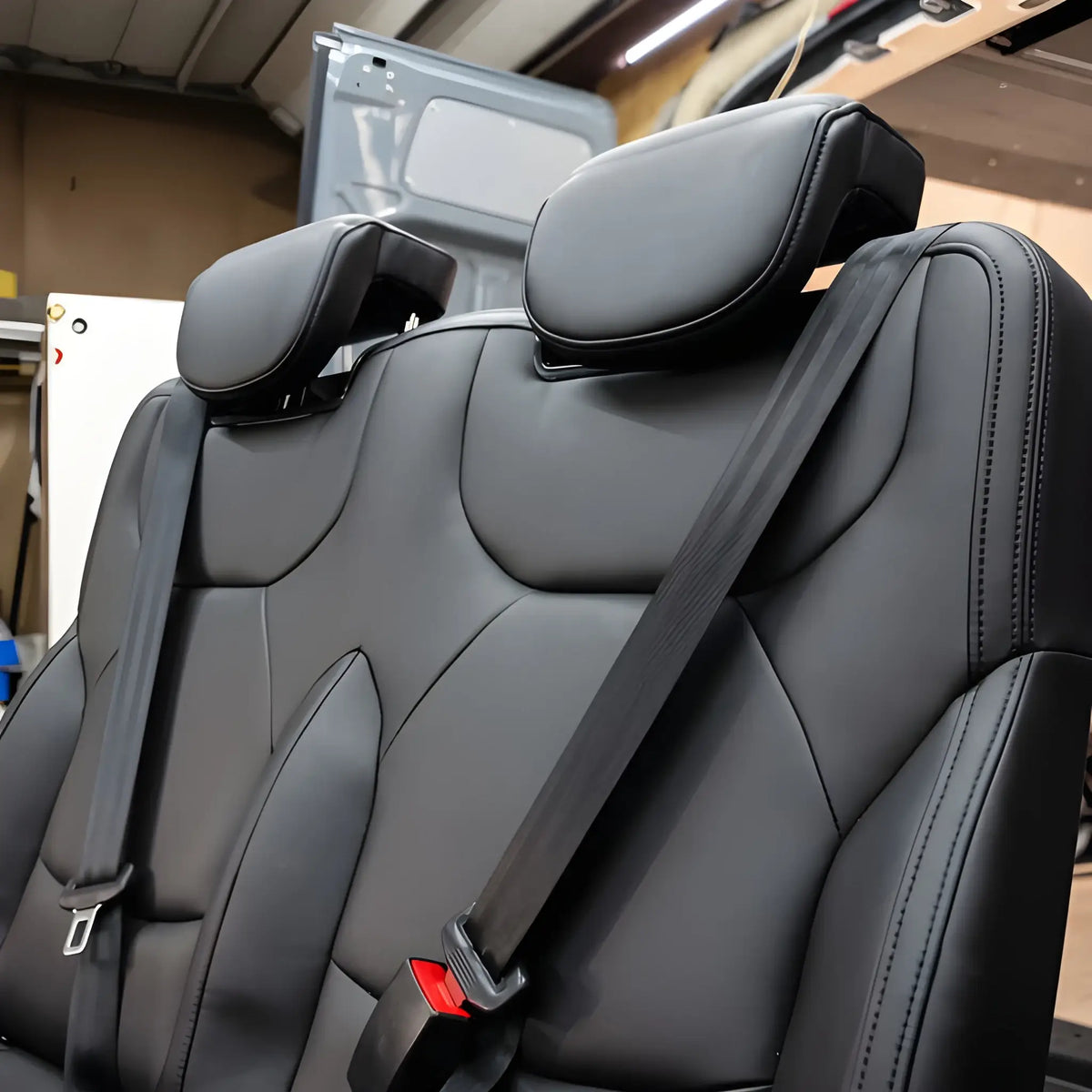

  • Close-up of the NovaLux Duo RS double seat headrests, contoured black backrests and integrated shoulder belts in a workshop.

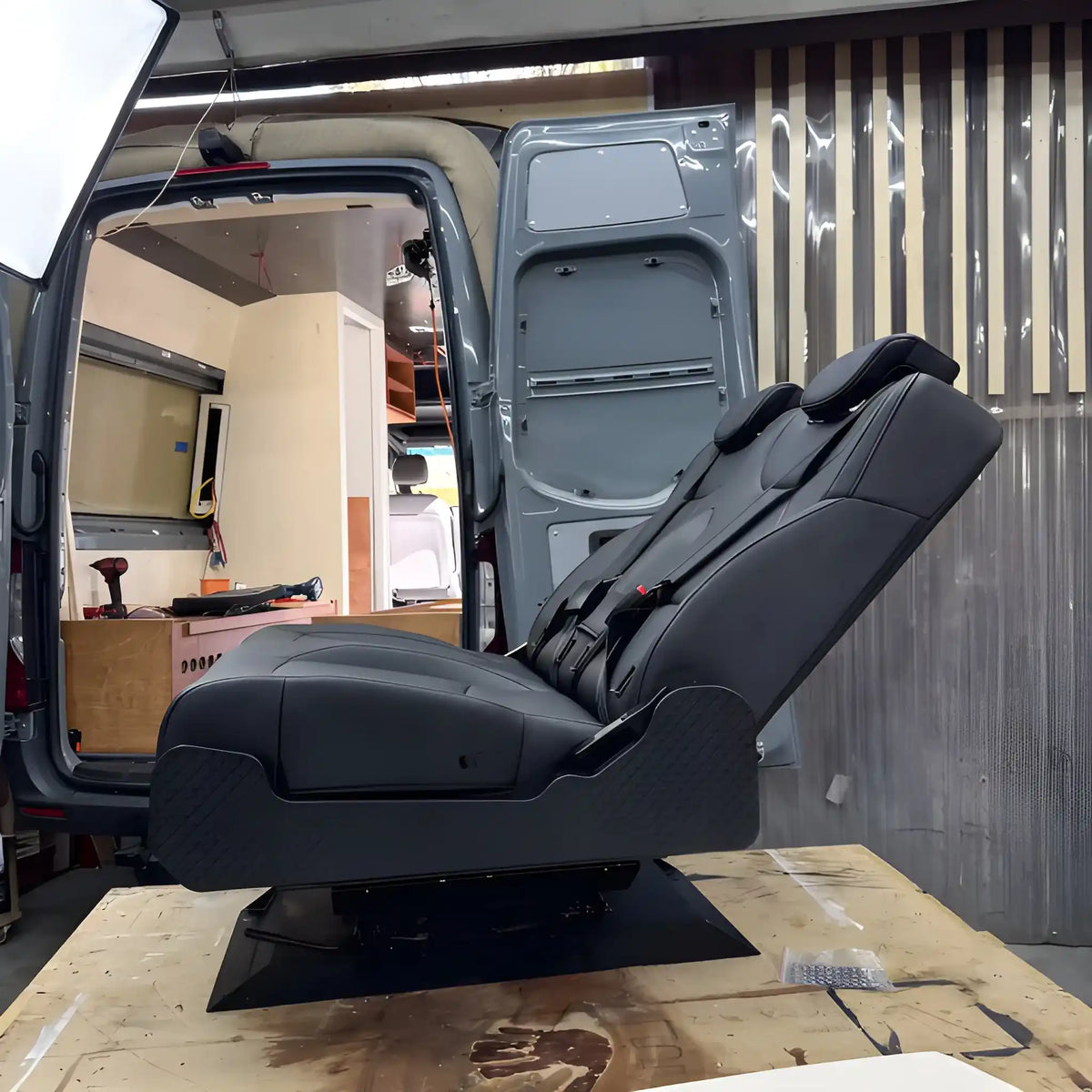

  • Side view of the NovaLux Duo RS on a workshop bench with its backrest reclined above the swivel mounting base.

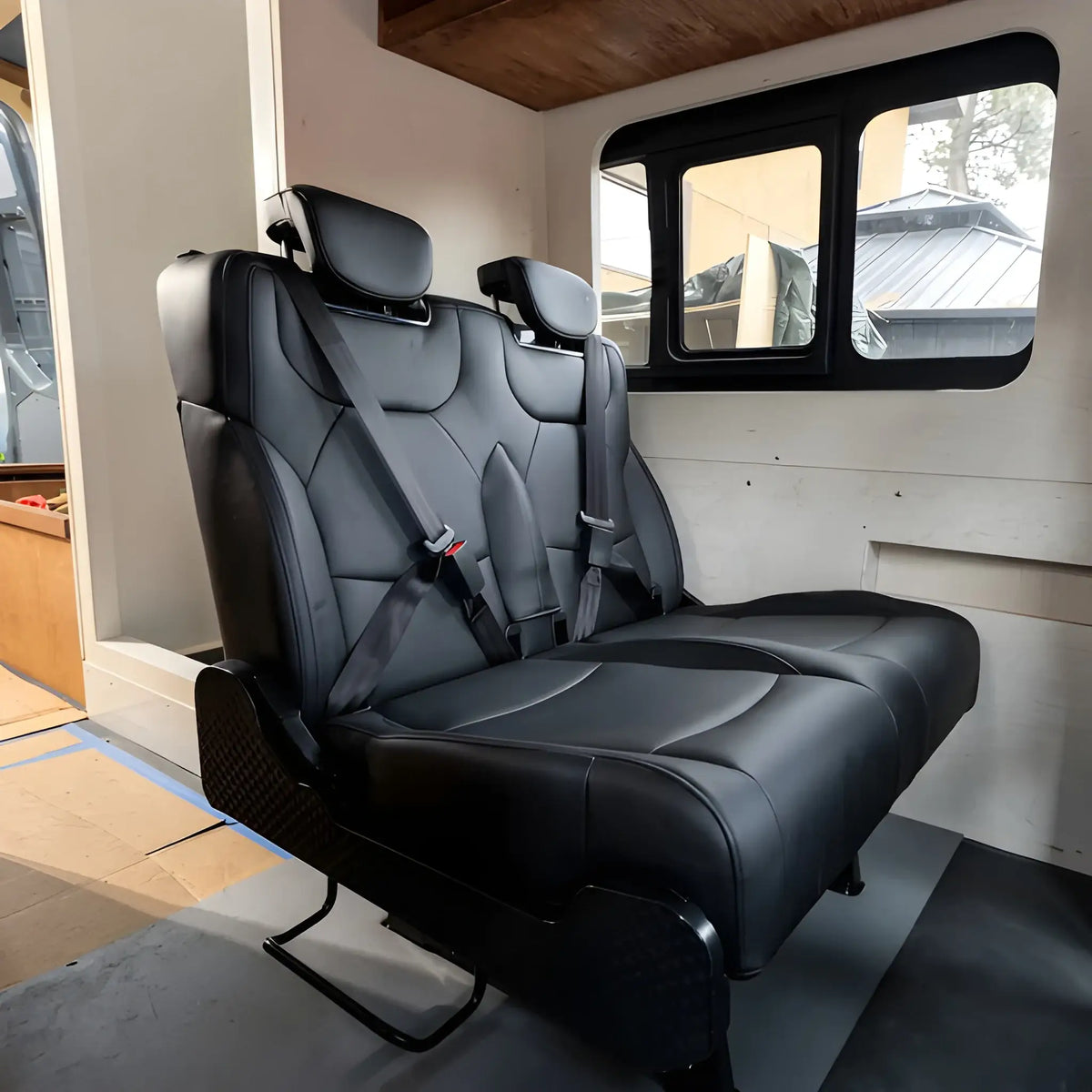

  • NovaLux Duo RS black double van seat installed beside a camper van window, with two headrests and integrated seat belts.

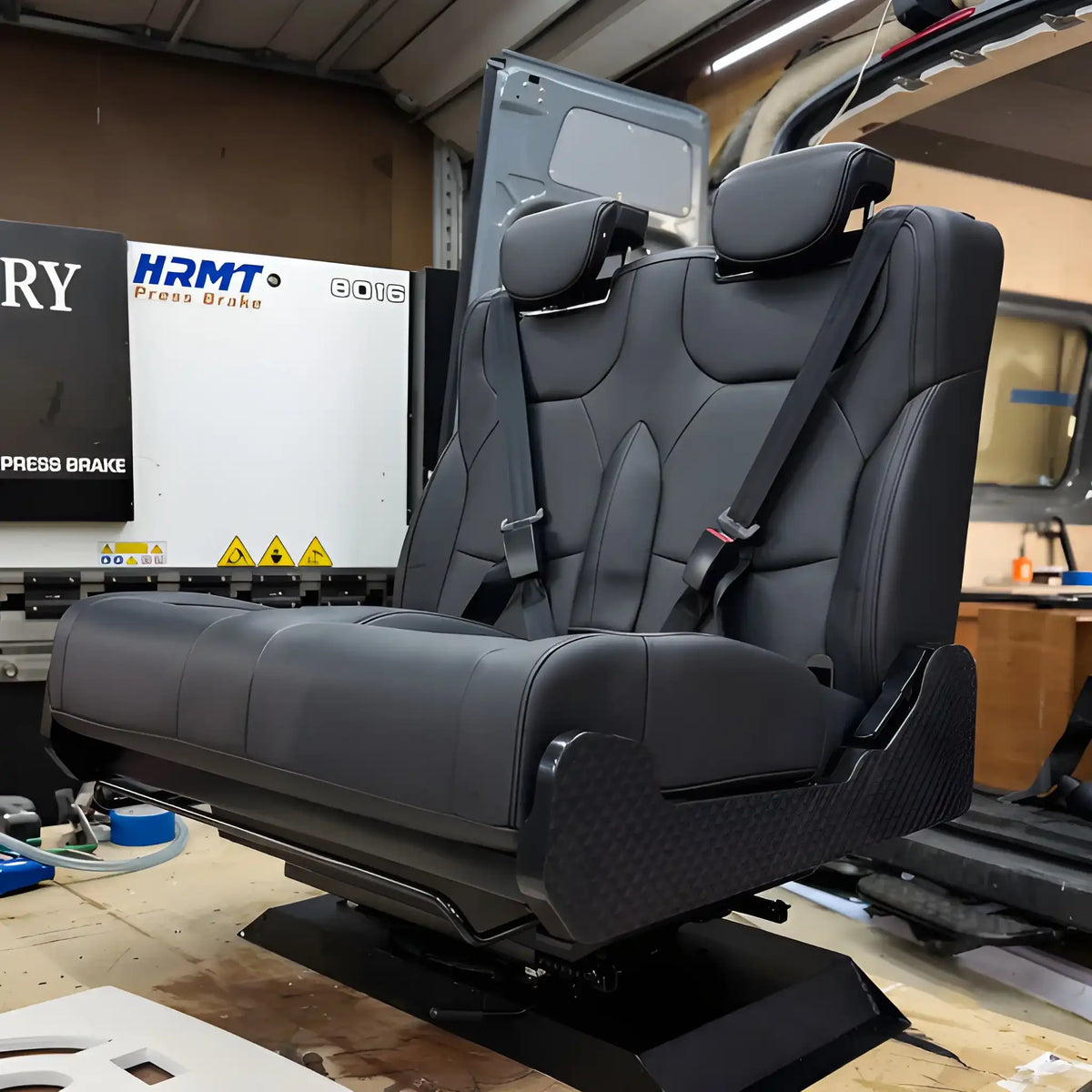

  • NovaLux Duo RS double swivel seat on a workshop bench, showing the upright backrests, cushions and mounting base.

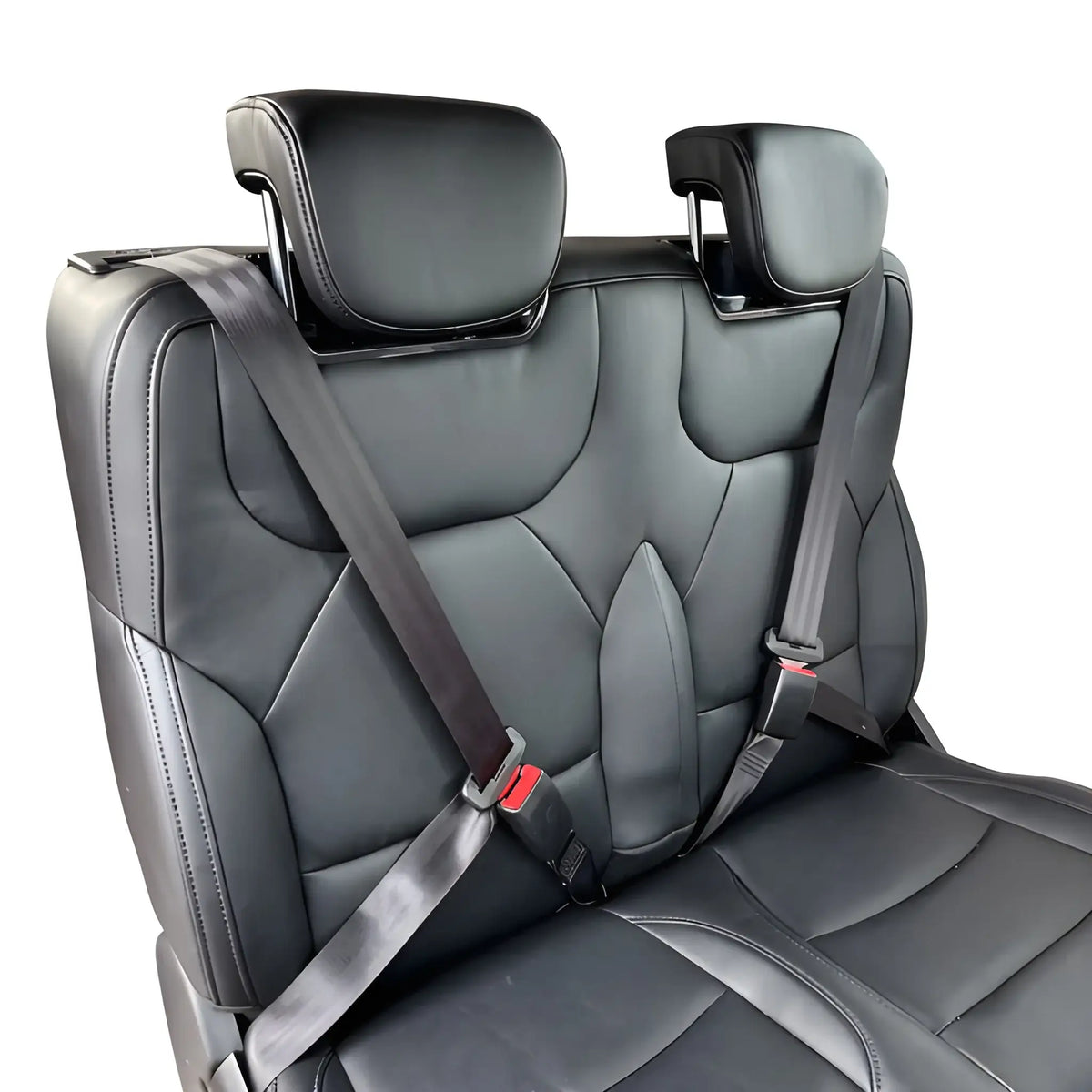

  • Detail of the NovaLux Duo RS double seat showing adjustable headrests, upholstery stitching and red seat belt buckles.

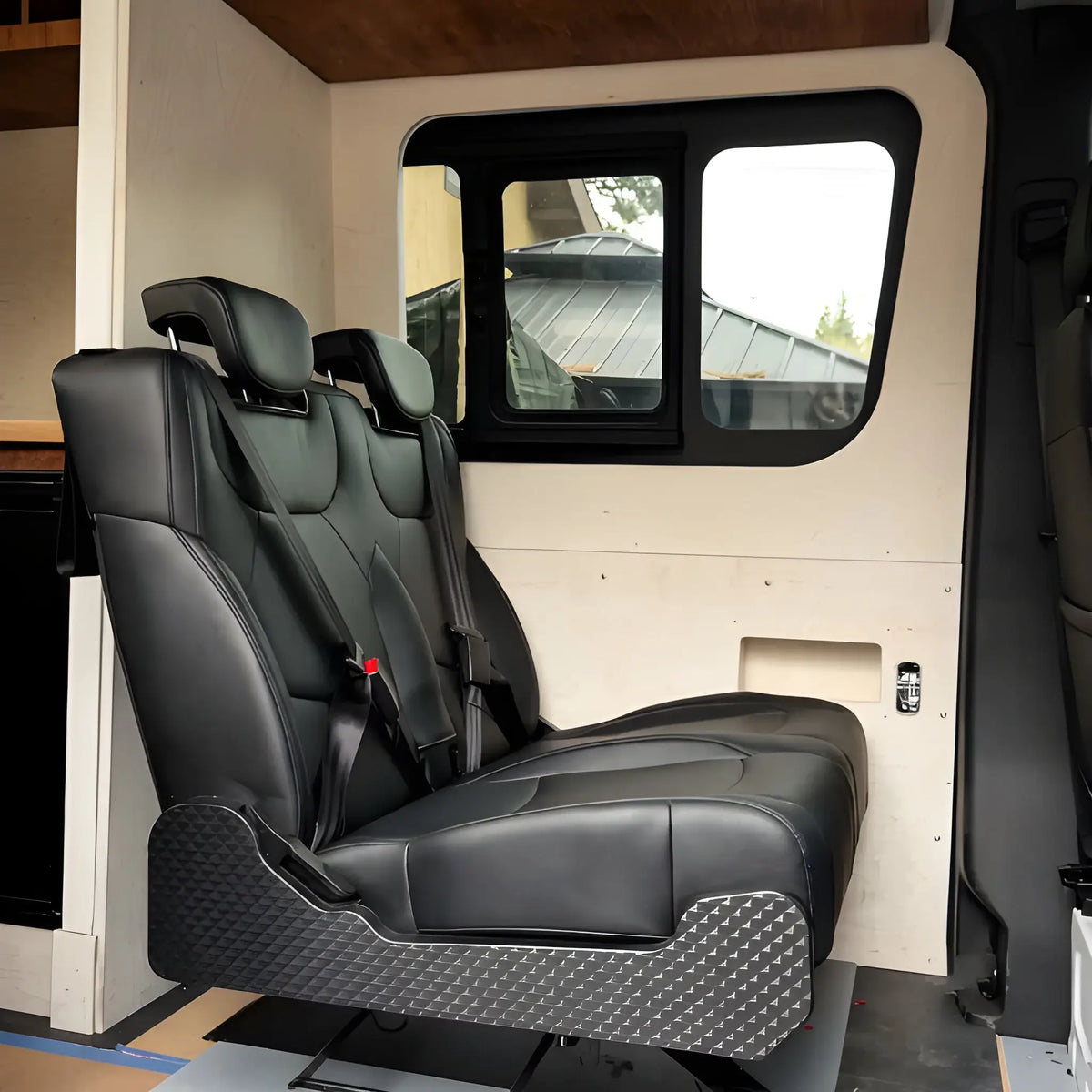

  • Side view of the NovaLux Duo RS double seat installed inside a camper van beneath a sliding window.

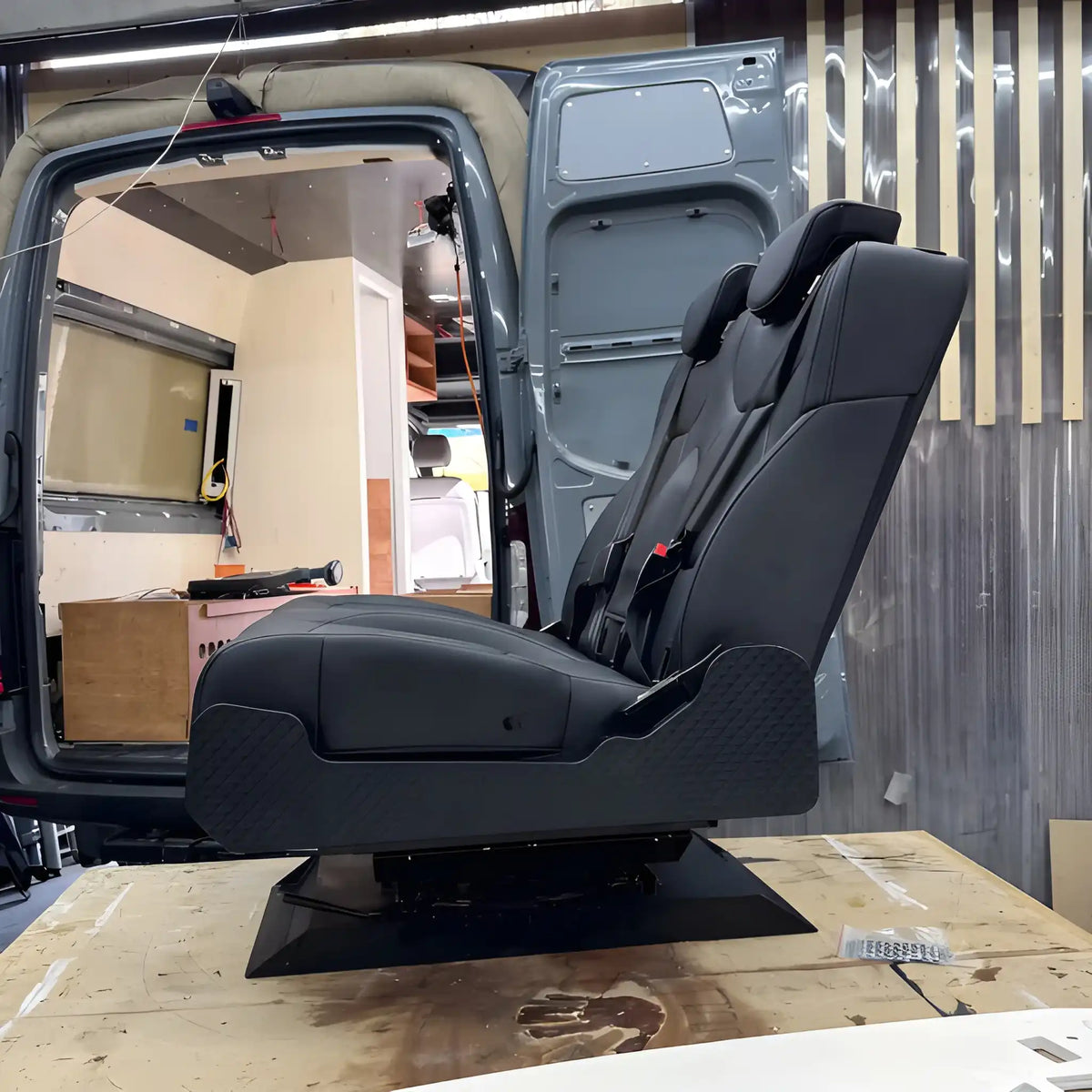

  • Side profile of the NovaLux Duo RS double seat on a workshop bench, showing the backrest, patterned side panel and swivel base.

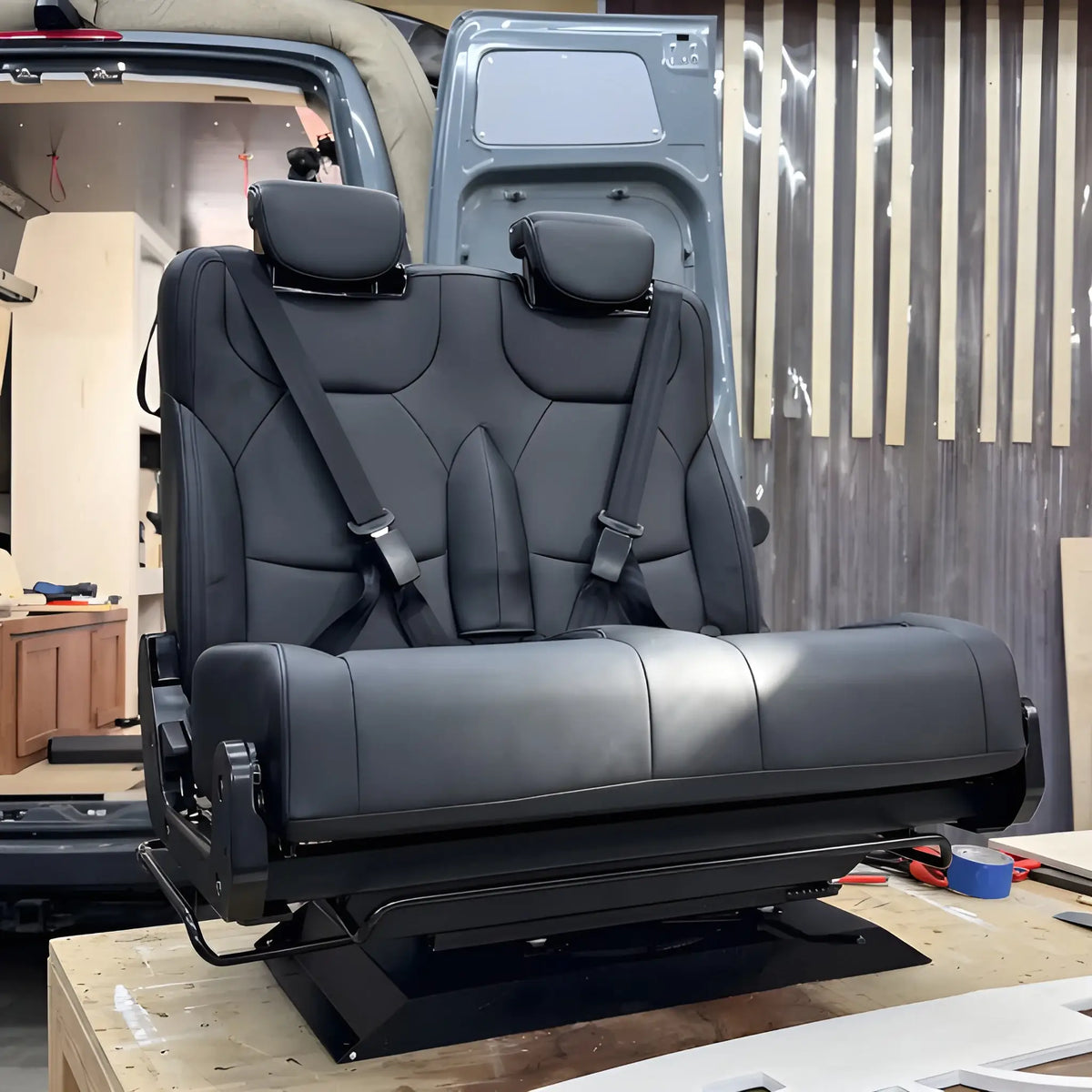

  • Front view of the NovaLux Duo RS double swivel seat on a workshop bench with seat belts, headrests and lower adjustment bar.
1 17

NovaLux

NovaLux Duo RS 35" (90cm) Swivel Seat-to-Bed for Sprinter, Transit & ProMaster

NovaLux Duo RS 35" (90cm) Swivel Seat-to-Bed for Sprinter, Transit & ProMaster

Low stock: 10 left

$2,860.00 USD
$2,860.00 USD
$2,860.00 each
Sale Sold out
Shipping calculated at checkout.

ADD COMPONENTS

NovaLux Duo RS 35" (90cm) Swivel Seat-to-Bed for Sprinter, Transit & ProMaster
NovaLux Duo RS 35" (90cm) Swivel Seat-to-Bed for Sprinter, Transit & ProMaster (Included)
✓
Seat price shown above includes the seat only. Any components listed below are optional add-ons sold separately.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

NovaLux Duo RS 35" Convertible Double Seat-to-Bed. A two-person van seat that converts from upright seating to lounging and a flat sleeping surface.

Plan your layout before installation: Reserve approximately 49" long × 35" wide for the seat to unfold into bed mode. Maintain 49" of clear space between the driver seat and the next cabinetry element. Swivel the driver seat sideways to allow the longer bed arrangement.

About the Duo RS

The Duo RS combines two seating positions in one double-seat assembly. Its reclining backrest and folding mechanism let the same space serve as passenger seating, a lounge, or a sleeping area.

  • Seat-to-bed conversion: Unfolds to a flat sleeping surface. The driver seat must be swiveled sideways for the longer bed arrangement.
  • Swivel function: Use with the compatible swivel base to turn the seat toward the living area. The swivel base is offered separately under Add Components.
  • Integrated belts: Two integrated 3-point seat belts.
  • ISOFIX attachment points: Built-in child-seat attachment points accessed through the rectangular guides at the backrest-to-cushion junction. Confirm compatibility and installation requirements with the child-seat and seat instructions.
Dimensions & Bed-Mode Clearance
  • Seat assembly: Approximately 35.4" wide × 31.5" deep × 43.4" high.
  • Overall installed height shown in the drawing: 48" from floor to headrest; height depends on the mounting setup.
  • Unfolded length shown in the drawing: 48.4".
  • Layout space to reserve: Approximately 49" long × 35" wide for conversion, including bed mode.
  • Installation clearance: Maintain 49" of clear space between the driver seat and the next cabinetry element. Check the actual swivel and unfolding path against your van layout.

The 49" clearance is a layout-planning measurement. The longer bed arrangement depends on the driver seat being swiveled sideways and the available space in your van.

Features & Design
  • Reclining backrest: Adjust between upright seating, lounging, and bed mode.
  • Upholstery: Synthetic leather over foam cushioning.
  • Frame: Reinforced steel construction.
  • Child-seat attachment: Integrated ISOFIX attachment points.
Vehicle Compatibility

For custom floor-mounted installations in Mercedes Sprinter, Ford Transit, and Ram ProMaster van builds. Verify floor structure, mounting points, installed height, and bed-mode clearance for your specific vehicle and cabinetry layout.

Aftermarket component not affiliated with Mercedes-Benz, Ford, or Ram. Vehicle names are for fitment reference only.

Installation & Components

This listing is for one NovaLux Duo RS double-seat assembly with two seating positions and seat-to-bed conversion. The compatible swivel base is offered separately under Add Components.

  • Reserve the 49" × 35" conversion footprint before placing cabinetry.
  • Swivel the driver seat sideways before using the longer bed arrangement.
  • Professional installation is strongly recommended for secure structural mounting.
  • Confirm passenger-seating requirements and child-seat compatibility before use.

NVX-ST-DUORS-35IN-EP6334

View full details

Why Van Builders Choose NovaLux

🔄

Swivel-Base Compatibility

Use the compatible swivel base to face the living area. Base offered separately.

🛋️

Seat-to-Bed System

Unfolds to a flat sleeping surface. Reserve 49" × 35" for conversion.

🧵

Reclining Backrest

Adjust from upright seating to lounging and bed mode.

🔋

Integrated Belts & ISOFIX

Two integrated 3-point belts and ISOFIX child-seat attachment points.

Compatible With

Mercedes Sprinter

Mercedes Sprinter

NCV3 & VS30 platforms

Ford Transit

Ford Transit

High-roof & mid-roof

Ram ProMaster

Ram ProMaster

Flat-floor builds

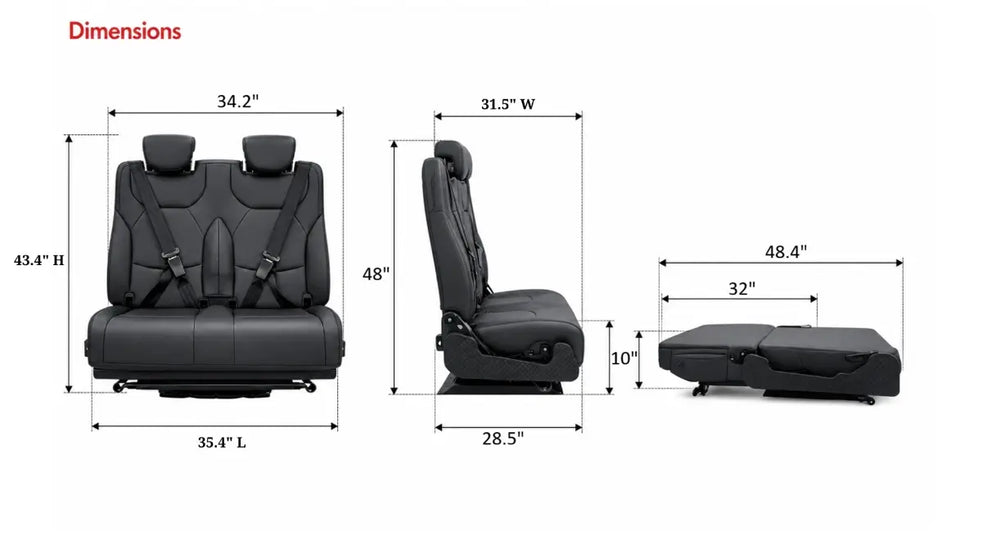

Dimensions Graph
➔ Swipe to view full layout
Measurement Value
Double-Seat Assembly35.4" W × 31.5" D × 43.4" H
Conversion Space to ReserveApproximately 49" L × 35" W
Width Across Headrests34.2"
Overall Height (Floor to Headrest)48"
Driver-Seat-to-Cabinetry Clearance49" clear space for unfolding
Unfolded Length in Drawing48.4"
Longer Bed ArrangementSwivel the driver seat sideways
BeltsIntegrated 3-point, frame-mounted
UpholsteryAutomotive-grade synthetic leather
FrameReinforced steel
Compatible VansSprinter, Transit, ProMaster
Child-Seat AttachmentIntegrated ISOFIX attachment points

Compare NovaLux vs OEM Seat

Feature NovaLux Seat OEM Seat
Converts to BedYes; reserve 49" × 35" for conversionNo
SwivelWith compatible swivel base (sold separately)No
ReclineAdjustable reclineLimited
Integrated BeltsYes(3-point)Varies
ComfortPremium foam + lumbarBasic
✓ BETTER VALUE

Frequently Asked Questions

Will this seat fit my van?

Designed for floor-mounted install in Sprinter (NCV3/VS30), Transit (high/mid-roof), and ProMaster (flat-floor). Verify floor structure and mounting points first.

How much space is needed for bed mode?

Reserve approximately 49" long × 35" wide. Maintain 49" of clear space between the driver seat and the next cabinetry element. Swivel the driver seat sideways for the longer bed arrangement. Verify the swivel and unfolding path before installing cabinetry.

Does the Duo RS have ISOFIX?

Yes. The Duo RS has ISOFIX child-seat attachment points accessed through rectangular guides at the backrest-to-cushion junction. Confirm compatibility and installation requirements with the child-seat and seat instructions. The compatible swivel base is offered separately under Add Components.

Frequently Bought Together

NovaLux Duo RS 35

NovaLux Duo RS 35

Main Product
2,860.00
+

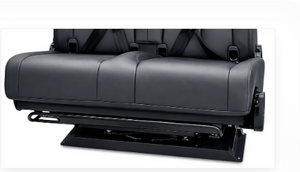

Swivel Base

Swivel Base

Required for Install
$1,690.00
=
=
Complete Kit Price:
$4,450.00
You Save: $100.00
