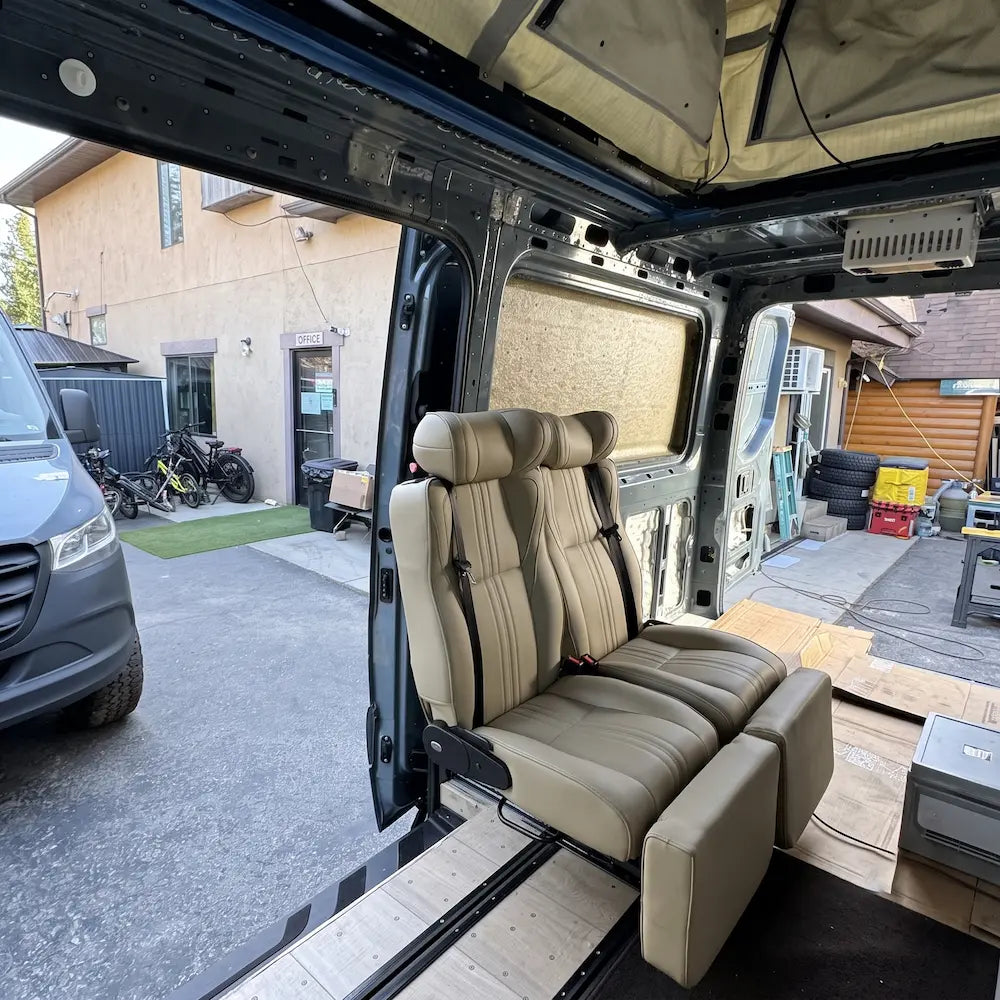

Most double seats are designed for motorhomes, leaving van builders with bulky benches that don't fit a modern floor plan. We spent years in the shop realizing that builders needed a seat that was actually versatile. We designed the Duo GT to solve the most common builder headaches:

• Adjustable Width: Unique to the Duo GT, the seat width adjusts by up to 6 inches to give you the right aisle clearance for your cabinetry.
• Seat-to-Bed Conversion: Reclining backrests transition into a flat 63-inch sleeping platform — a foundation for your bed system.
• Dual-Passenger Comfort: Dual adjustable footrests and ergonomic support for everyone in the back.

The "GT" represents long-haul comfort. From breathable upholstery to the powder-coated steel frame, every detail was thought through by the team at Big Bear Vans.

Every van layout is unique. We've made our mounting system modular so you only pay for the hardware your specific build needs. Note: Our hardware is engineered specifically for the NovaLux Duo GT and is not sold separately for other seat brands.

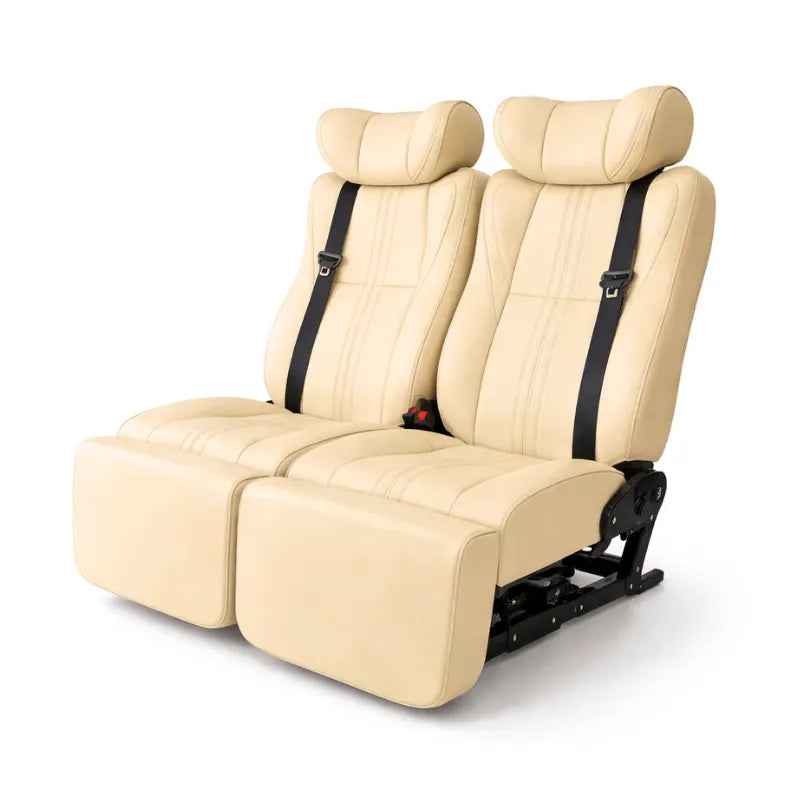

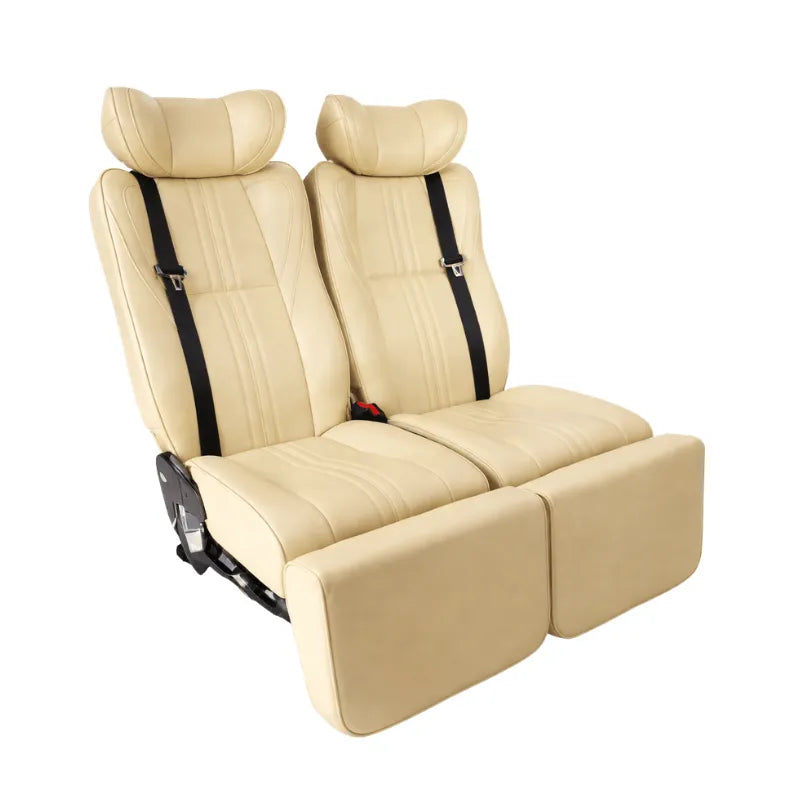

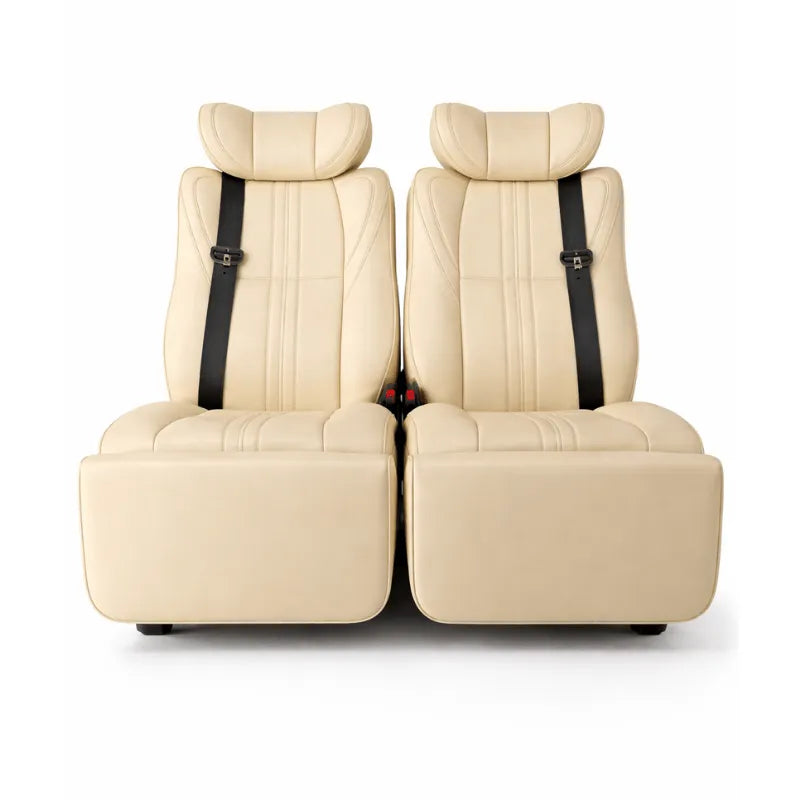

• Duo GT Double Seat (Core): Includes (1) double seat unit with integrated 3-point seat belts, reclining backrests, and dual adjustable leg rests.
• + 360° Swivel Base (Optional Add-on): Add this if you need the seat to rotate for a "living room" layout. Includes heavy-duty ball-bearing rotation hardware.

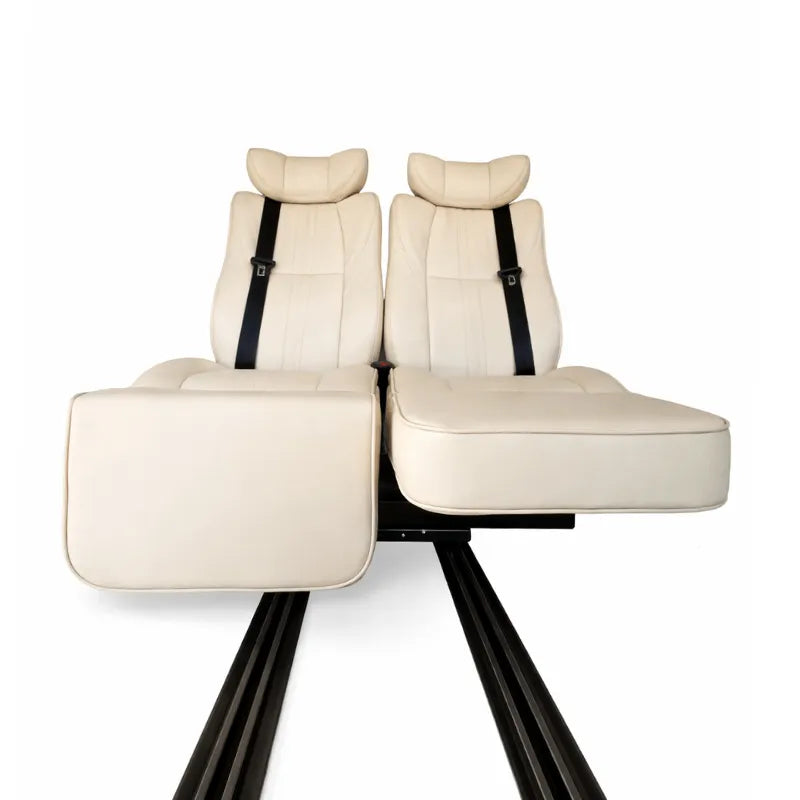

• + Floor Track Mounting System (Optional Add-on): Add this for a secure floor-mount installation. Includes reinforced aluminum rails.

• Seat-to-Bed Conversion: Reclining backrests convert into a flat 63-inch sleeping platform.

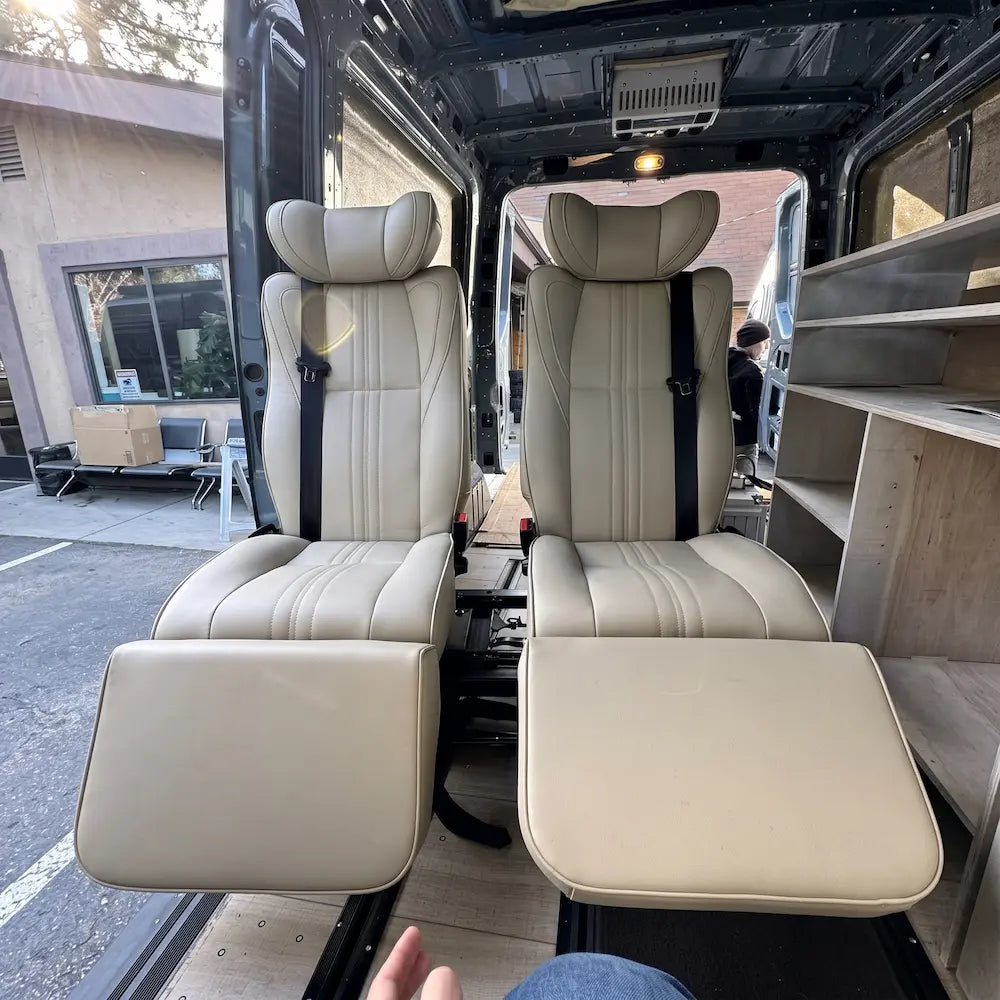

• Adjustable Ergonomics: Dual adjustable footrests and adjustable seat width up to 6".

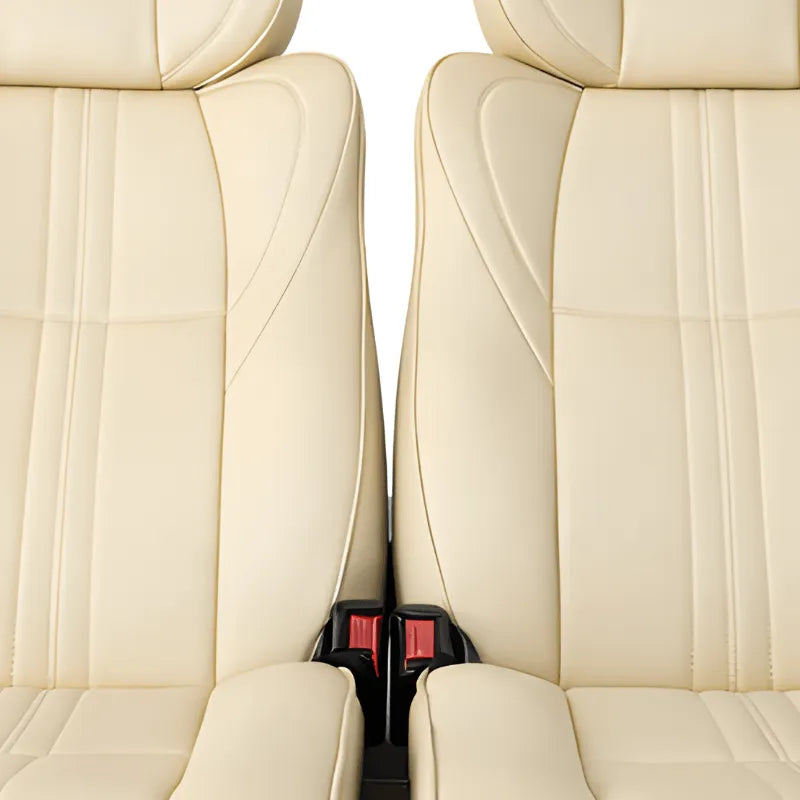

• Integrated Belts: 3-point retractable shoulder belts with retractor mechanism.
• Material: Durable, breathable, flame-retardant automotive-style upholstery.

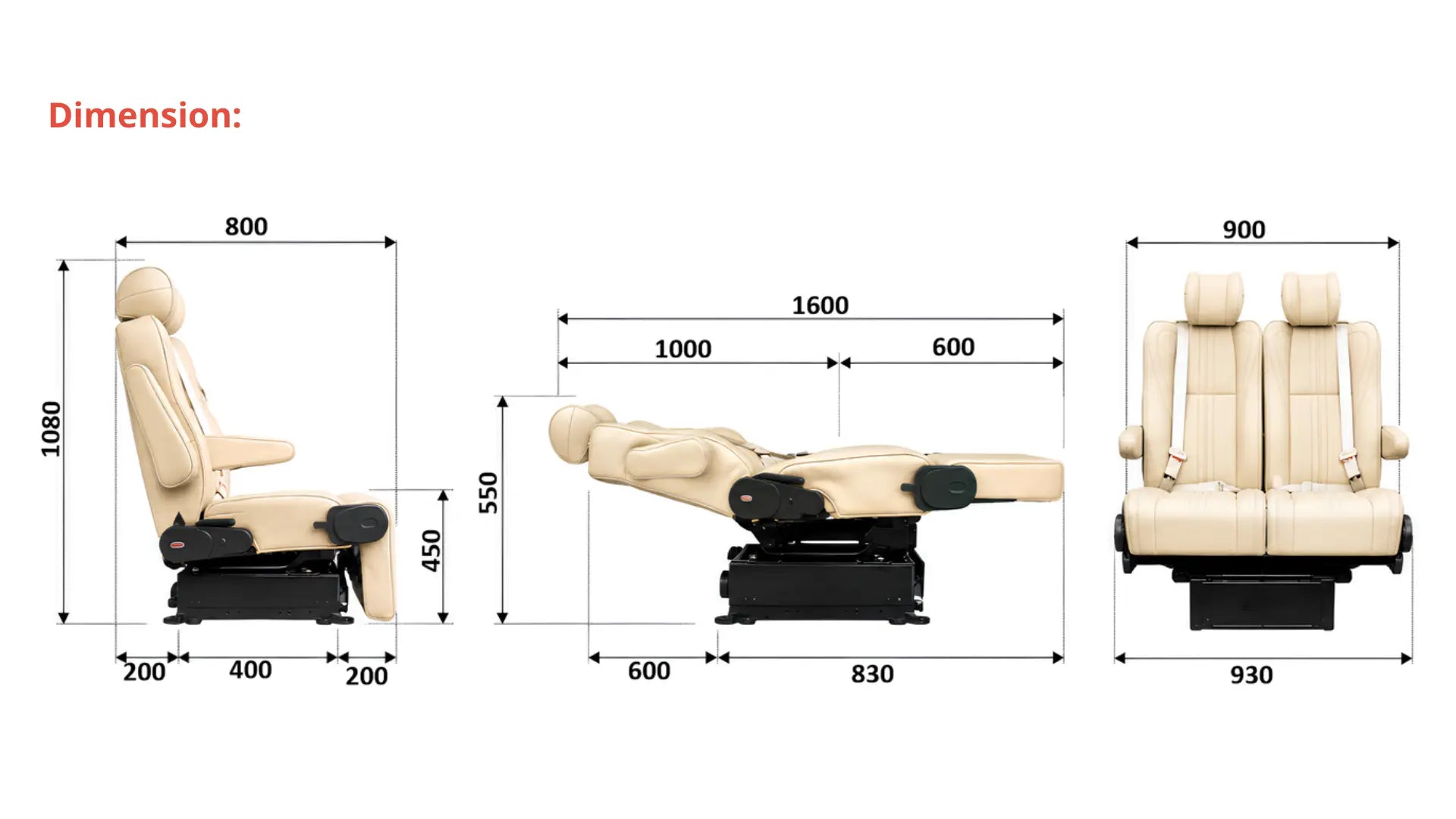

All measurements provided in both metric (mm) and imperial (inches). Refer to the dimension diagram in the product gallery.

Upright / Seated Position

• Overall Height: 1080 mm / 42.5"
• Seat Width (per seat): 800 mm / 31.5"
• Bench Width (both seats together): 900 mm / 35.4"
• Seat Depth (incl. extended footrest): 800 mm / 31.5" — broken down as 200 mm leg rest + 400 mm cushion + 200 mm clearance
• Seat-to-Floor Height: 450 mm / 17.7"

Bed / Reclined Position

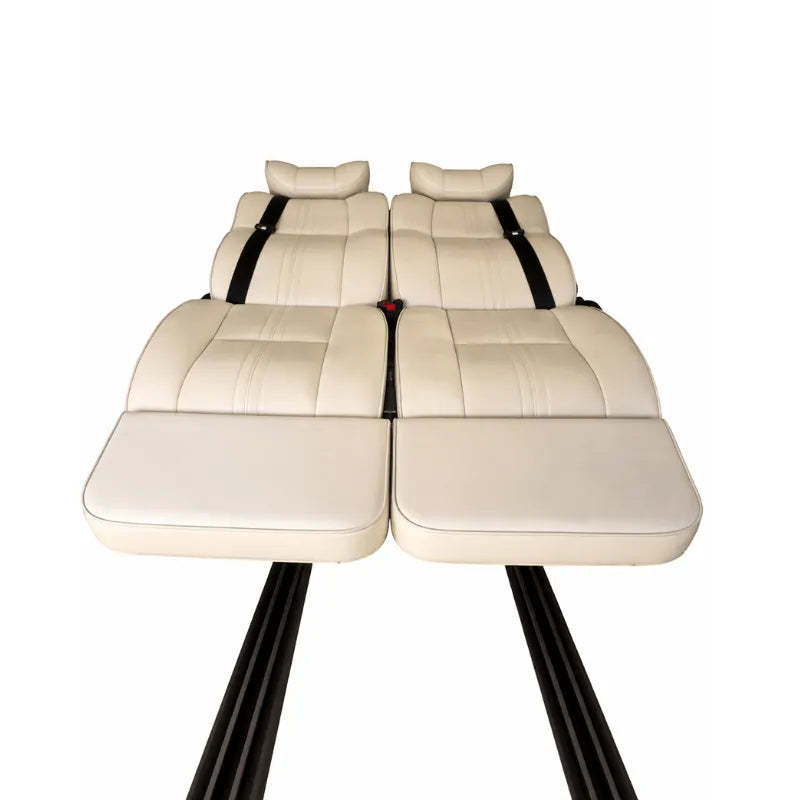

• Total Bed Length: 1600 mm / 63" — 1000 mm / 39.4" seat section + 600 mm / 23.6" footrest extension
• Bed Surface Height from Floor: 550 mm / 21.7"
• Total Footprint with Footrest Deployed: 1430 mm / 56.3" — base 830 mm + footrest 600 mm

Base Footprint

• Base Width: 930 mm / 36.6"

• Construction: Reinforced steel frame with powder-coated finish.
• Belts: Integrated 3-point retractable shoulder belts.
• Total Weight: Seat unit: 185 lbs | Hardware: 35–50 lbs. Factor into your payload calculation.

• Built-to-Order: Standard production lead time of 4–6 weeks.
• Shipping Method: Ships via heavy freight on a pallet.
• Installation: Professional installation required for proper structural mounting and to maintain warranty.

Disclaimer: This is an aftermarket component not manufactured by Mercedes-Benz, Ford, or Ram. Vehicle names are for fitment reference only.
