Tired of constantly watching your battery monitor? The VanTrix 600Ah is built for the serious off-gridder. This single unit replaces an entire bank of traditional batteries, giving you enough power to run air conditioners, induction cooktops, high-end workstations, and full home energy systems without breaking a sweat. And with over 24,000 cycles of proven life, it's not just a battery. It's a decade-plus investment in true energy independence.

• Grade A LiFePO4 Cells: Factory-direct Grade A cells deliver superior energy density, chemical stability, and zero memory effect. | Safer, longer-lasting than standard lithium
• Extraordinary Cycle Life: ≥24,000 cycles at 25°C; more than 6× the cycle life of standard LiFePO4 batteries on the market. | Designed for daily use over 10+ years
• Extreme Temperature Operation: Operates from -30°C to 60°C without any external heating system required. | Four-season reliability in any climate
• Massive 7.2kWh Storage: Enough capacity to run a 2000W–3000W inverter system and power a full off-grid lifestyle from a single unit. | Simplifies wiring and saves space
• Smart Built-in BMS: The integrated high-performance Battery Management System handles all cell balancing and protection automatically. | Maintenance-free, set-and-forget operation
• Customisation Available: OEM/ODM accepted. Discharge current, charging current, and configurations can be customised to order. | Factory-direct flexibility
• 5-Year Warranty: Backed by a full 5-year manufacturer warranty and free replacement parts with online technical support. | Buy with complete confidence

If you want to stop hunting for shore power and start living truly off-grid, the VanTrix 600Ah is the most important and most durable investment you can make in your build.

The VanTrix 600Ah is a powerhouse designed to replace bulky lead-acid banks with a single, high-efficiency unit and outlast them by decades.

• Total Capacity: 600Ah | 7.2kWh (7200Wh) Total Energy Storage | Grade A LiFePO4 cell architecture
• Nominal Voltage: 12V | Operating Voltage Range: 10V – 14.6V
• Maximum Charging Voltage: 14.6V | Standard Charging Current: 150A (customisable)
• Maximum Continuous Discharge Current: 200A (customisable) | Supports large 2000W–3000W inverters
• Cycle Life: ≥24,000 Cycles @ 25±2°C | Industry-leading longevity for daily use
• Max Load Quantity: 2400 cells | High-density modular cell architecture
• Self-Discharge Rate: Minimal, maintains charge during long-term seasonal storage | Less than 3% monthly loss

Built for four-season performance across the harshest environments, this battery requires no external heating system, it natively handles extreme cold and heat.

• Operating Temperature Range: -30°C to 60°C (-22°F to 140°F) | One of the widest ranges available in a 12V LiFePO4 battery
• No Self-Heating Required: Native cold-weather operation down to -30°C means no additional heating pads or circuits needed. | Reduced system complexity and cost
• Smart Built-in BMS: Integrated Battery Management System protects against overcharge, over-discharge, excessive heat, short circuits, and over-current. | 24/7 cell-level protection
• Automatic Cell Balancing: BMS continuously balances all cells to ensure uniform charge distribution and maximum capacity utilisation. | Extends cycle life significantly
• Over-Discharge Protection: Automatically prevents the battery from reaching dangerous voltage levels. | Preserves long-term battery health
• Short Circuit Protection: Instantaneous BMS response prevents damage from accidental short circuits. | Safe for all installation environments

• Battery Type: LiFePO4; Lithium Iron Phosphate | Cathode Material: LiFePO4 | Safest and most stable lithium chemistry
• Model Number: 12V 600Ah
• Nominal Voltage: 12V
• Rated Capacity: 600Ah | 7.2kWh
• Operating Voltage Range: 10V – 14.6V
• Maximum Charging Voltage: 14.6V
• Standard Charging Current: 150A (customisable)
• Maximum Continuous Discharge Current: 200A (customisable)
• Cycle Life: ≥24,000 cycles @ 25±2°C
• Operating Temperature: -30°C to 60°C
• Dimensions (L × W × H): 450 × 330 × 230 mm / 17.7" × 13.0" × 9.1"
• Package Size: 15.75" × 20.50" × 12.25" (400 × 521 × 311 mm)
• Weight: ≤59 kg / ≤130 lbs | Gross Weight: 61 kg
• Protection: Built-in Smart BMS
• Warranty: 5 Years
• OEM / ODM: Accepted custom capacity, current, and configurations available
• Compliance: CE, RoHS, UN38.3 certified | Internationally recognised safety standards

The VanTrix 600Ah is a versatile deep-cycle battery designed for a wide range of high-demand power applications:

• Home Energy Storage Systems Primary application; ideal as a 12V 600Ah residential solar storage unit
• Electric Power Systems & Solar Arrays Pairs with solar panels and MPPT controllers for complete off-grid energy independence

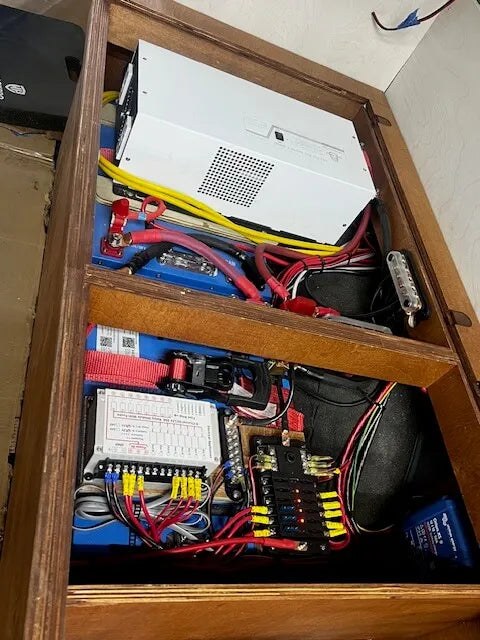

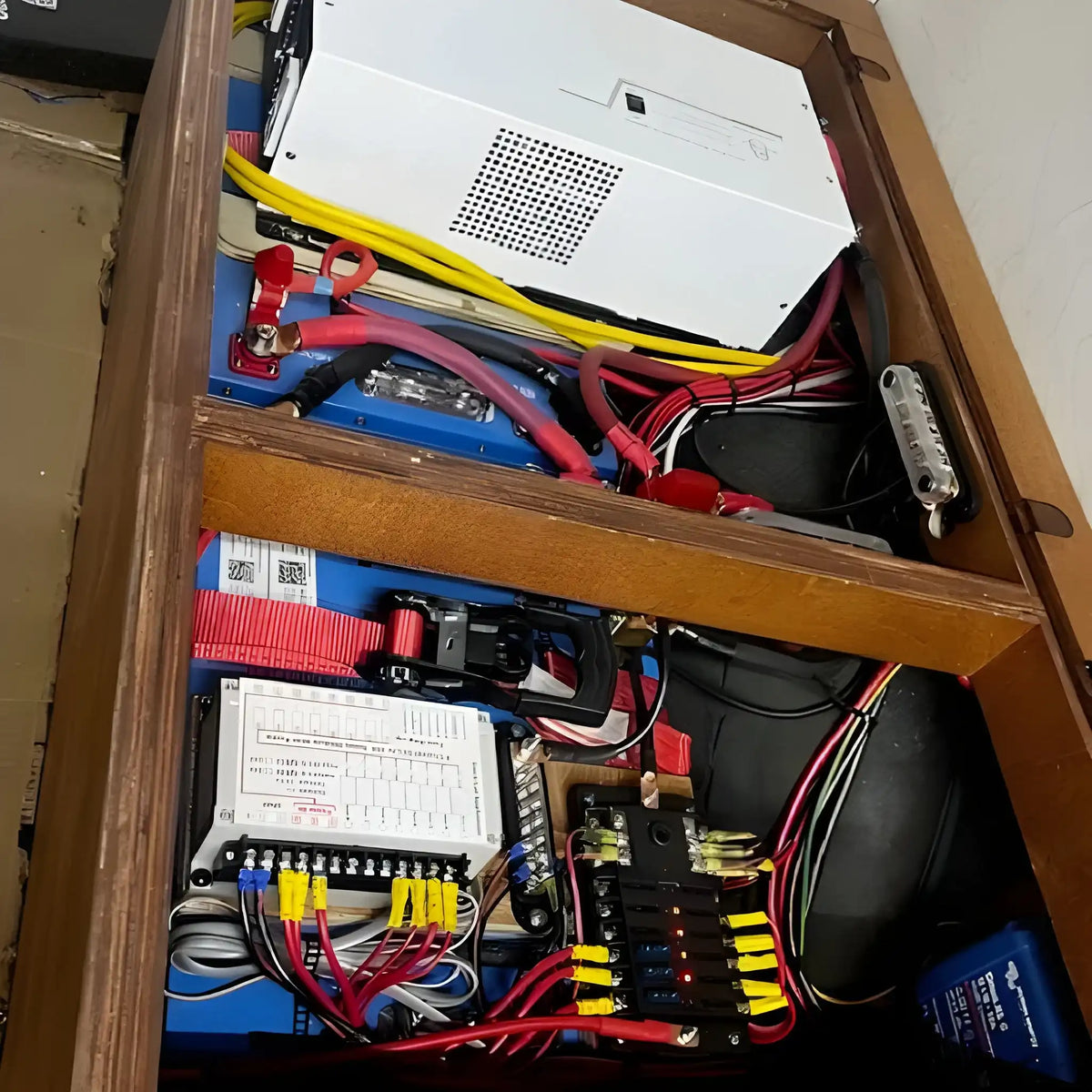

• RVs, Camper Vans, Caravans & Trailers Replace your entire lead-acid bank with one powerful unit
• Electric Vehicles & Golf CartsHigh-cycle, high-discharge performance for EV drivetrains
• Electric Bicycles & Scooters Lightweight and long-lasting for personal electric transport
• Electric Forklifts & Industrial Equipment Handles continuous high-current discharge for industrial applications
• Wind & Solar Hybrid Off-Grid Systems Supports multi-source charging for reliable 24/7 power
• UPS & Emergency Backup Power Keeps critical systems running during power outages

The VanTrix 600Ah supports multiple flexible charging options. Always ensure your charger or controller is set to a LiFePO4 profile at 14.6V.

• LiFePO4 Dedicated Charger: Set to 14.6V | Recommended standard charging current: 150A | Most efficient method for fast, full charges
• Solar Panel + MPPT Controller: Set MPPT to LiFePO4 profile at 14.6V | Ideal for off-grid solar home systems and van builds
• DC-DC (B2B) Charger: Use a high-amperage DC-DC charger for vehicle alternator charging | Protects your alternator from overload
• Generator (via AC-DC Charger): Use a LiFePO4-compatible AC charger for generator top-ups | Great for backup and hybrid charging setups

⚠️ Important: Do NOT use AGM, Gel, or standard lead-acid charging profiles. Always set your charger or solar controller to a dedicated LiFePO4 profile (14.6V max) for safe operation and maximum cycle life.

• 1–5 units: 10 business days
• 6–50 units: 15 business days
• 51–100 units: 30 business days
• 100+ units: To be negotiated directly with supplier

Sold as single units. Package dimensions: 49 × 40 × 32 cm | Gross weight per unit: 61 kg

• 1 × VanTrix 12V 600Ah LiFePO4 Deep Cycle Battery (XBC / Chengdu Tianbochuang)
• 1 × Set of Terminal Hardware | Heavy-duty connection hardware
• ✅ Free replacement parts included
• ✅ Online technical support provided

Installation Note: Please verify that your solar controller, DC-DC charger, and AC-DC charger are configured with a LiFePO4 profile at 14.6V before installation. Using incorrect charging profiles will reduce performance and void warranty. | Essential for maximum cycle life and safety

Customisation Note: OEM/ODM is accepted. If you require a custom discharge current (above 200A), custom charging current (above 150A), or custom battery configuration, please contact us directly before ordering.

*Professional installation is strongly recommended for high-current electrical systems. This battery is not suitable for use as a starter/cranking battery.
