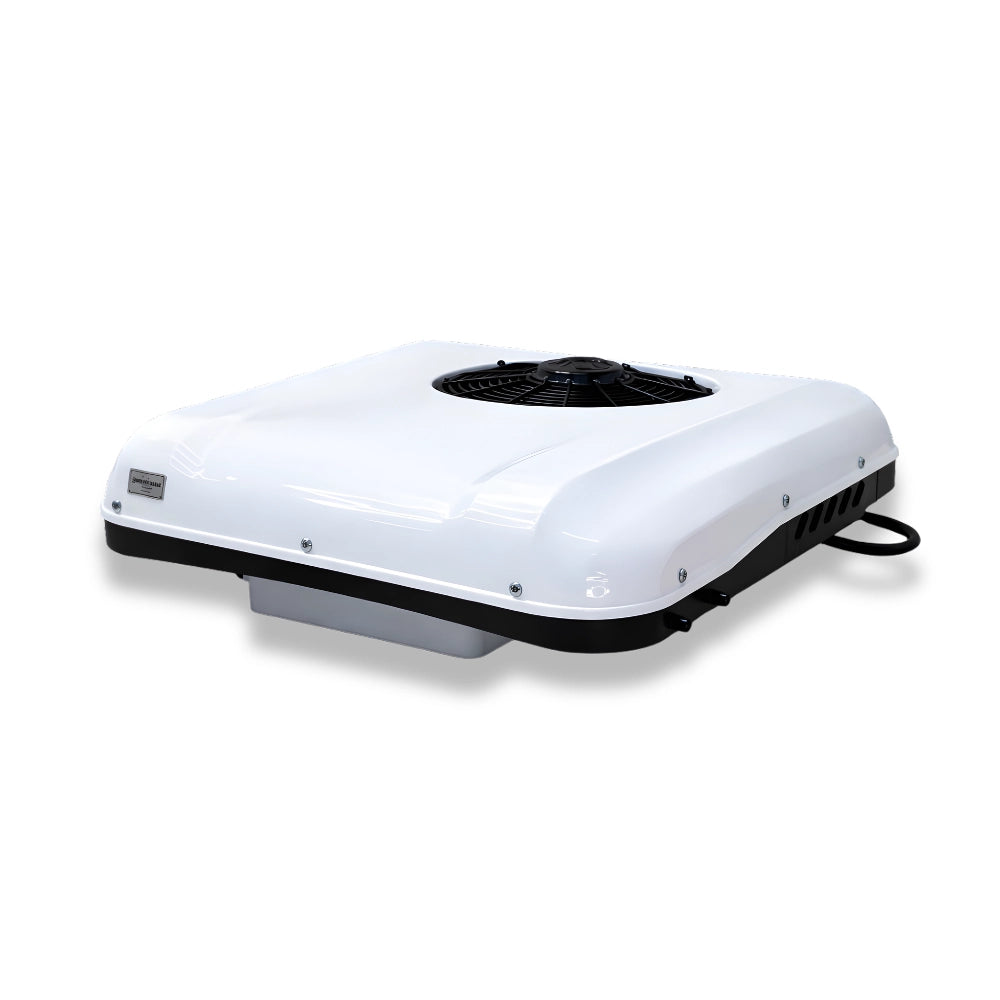

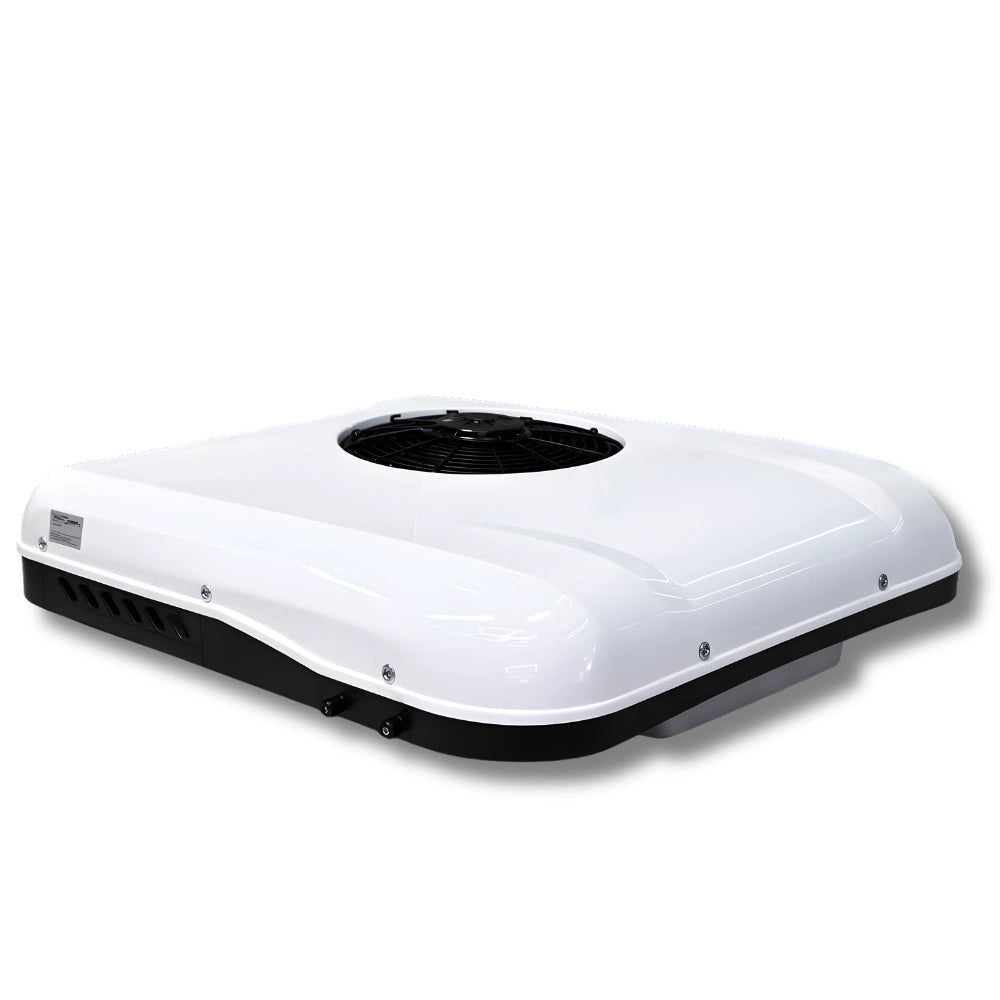

Stop letting the summer heat dictate your travel schedule. The Cryonex X700 is a game-changer for van builders who refuse to compromise on comfort. Unlike traditional 110V units that require massive inverters, this unit runs directly off your 12V system.

• Flush-Mount Interior: The low-profile internal plenum sits tight against your ceiling, preserving critical headroom in your build.

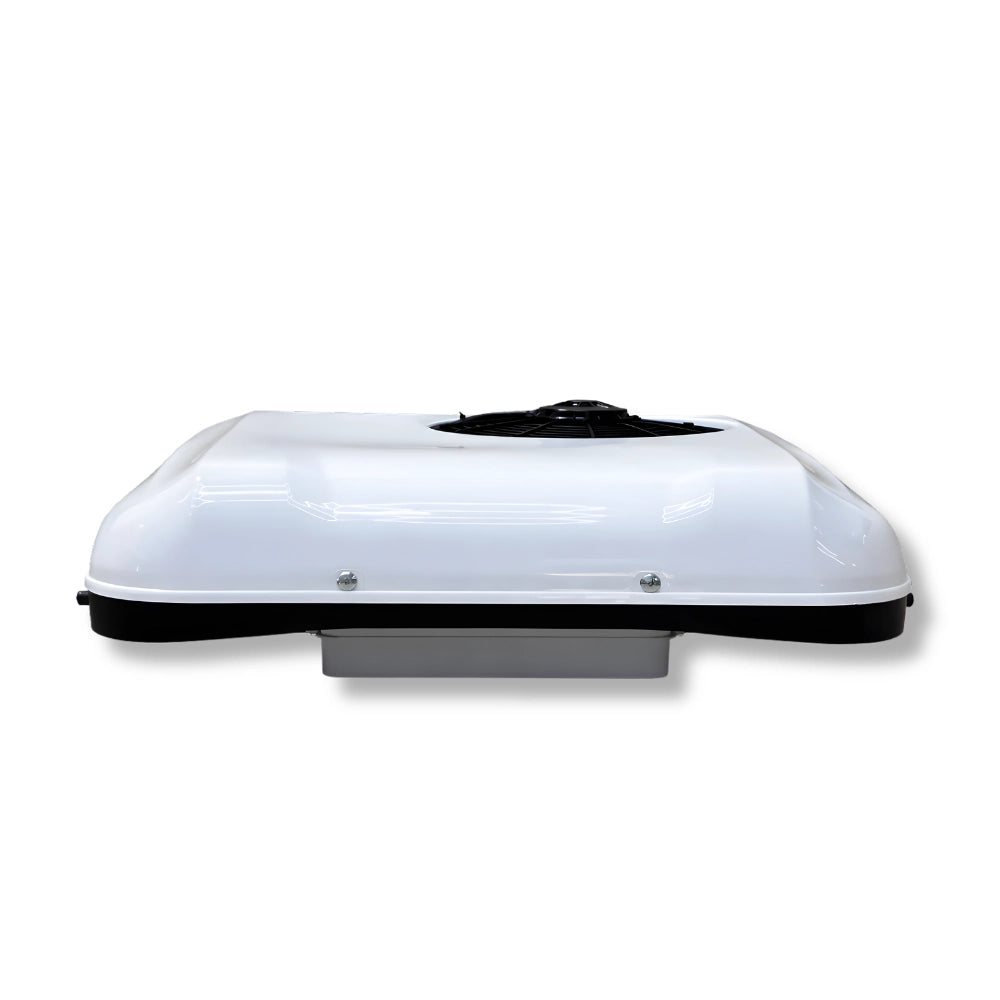

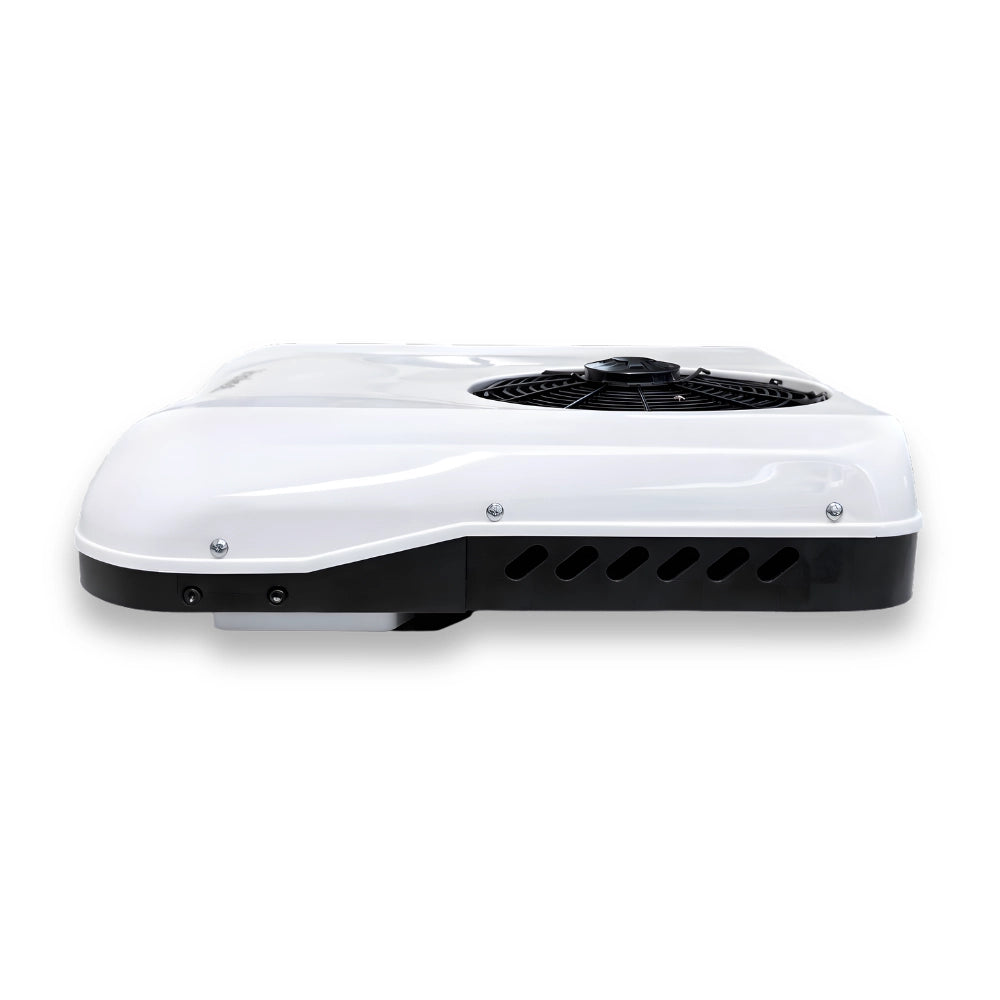

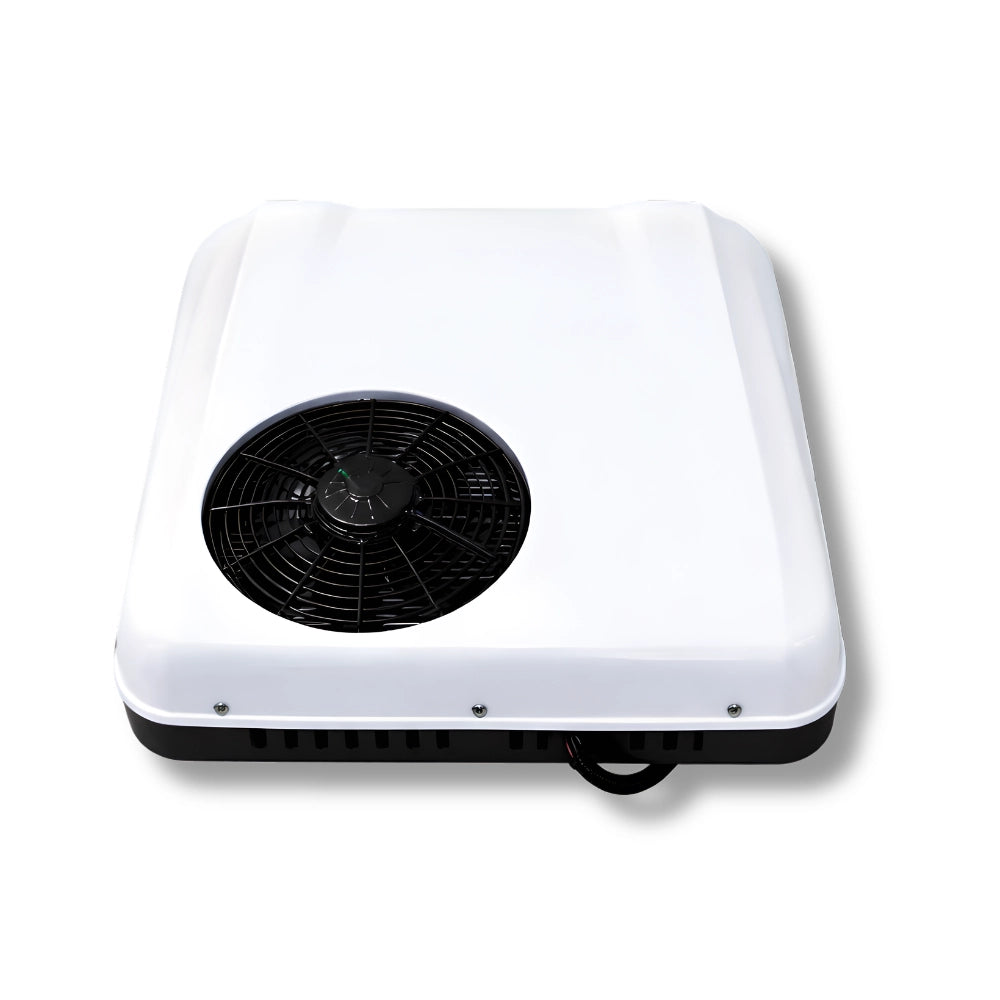

• Stay Stealthy: The ultra-slim 5.8" exterior profile ensures you can still clear low garages and maintain a low-profile look.
• Superior Cooling Power: 8,200 BTU output allows you to drop cabin temperatures in minutes.
• Battery Friendly: Specifically tuned for Lithium (LiFePO4) systems to maximize off-grid runtime.

• Cooling Capacity: 8,200 BTU (2400 W)
• Noise Level: ≤45dB (Ultra-Quiet Mode)

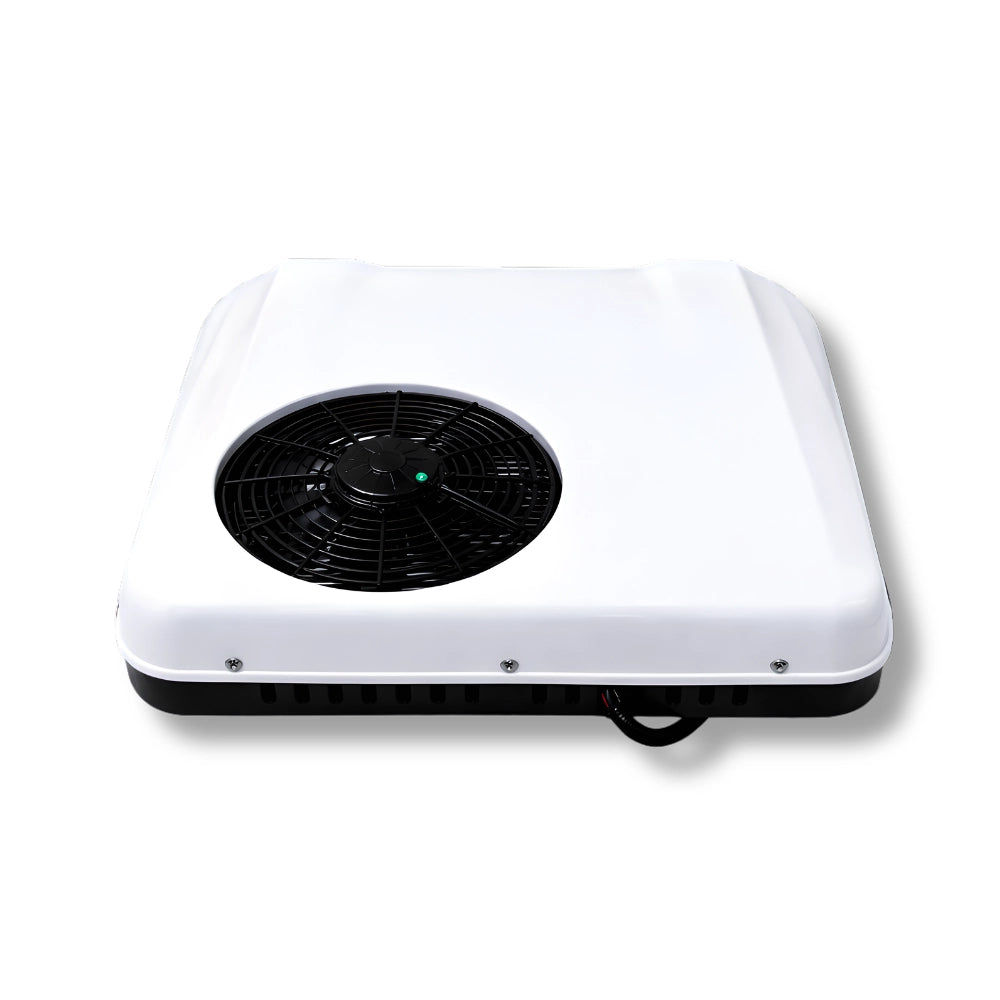

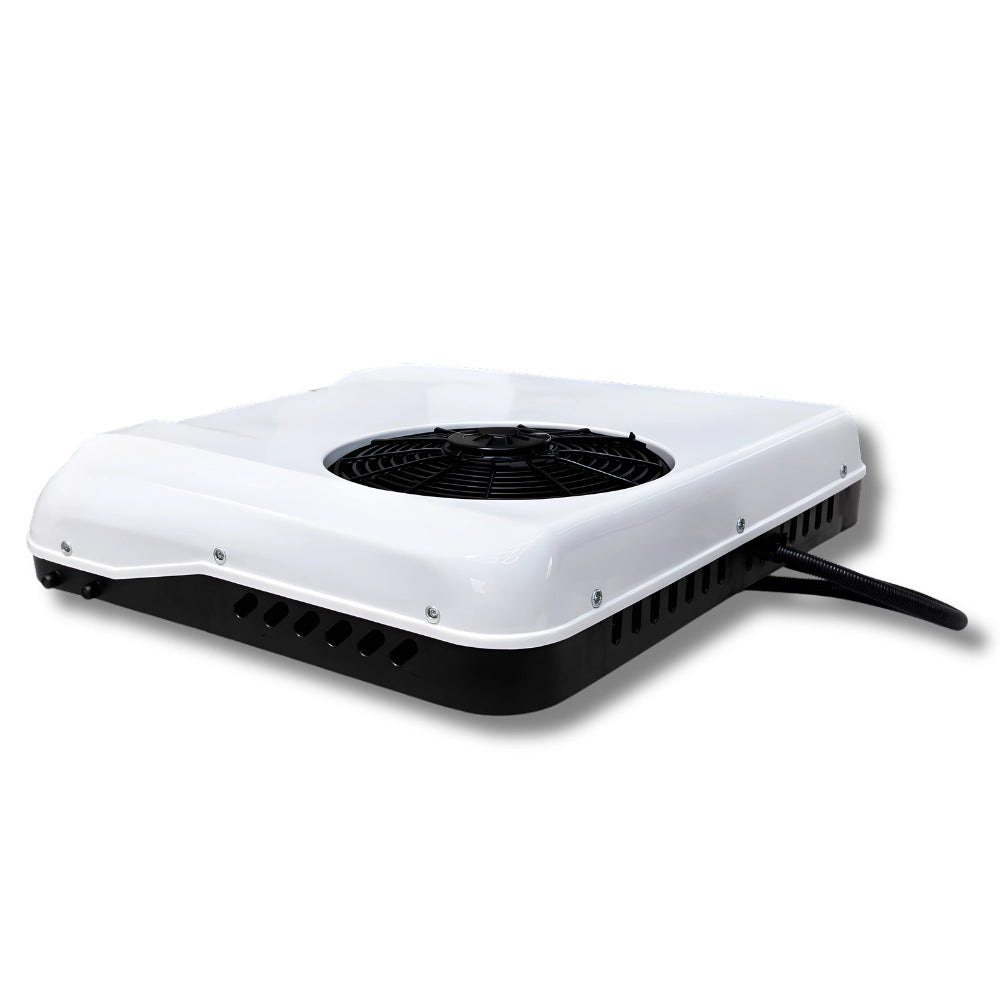

• Exterior Dimensions (Outdoor Condenser Unit): 27.5" × 27.5" × 5.8" (70cm × 70cm × 14.9cm) | H × W × D
• Indoor Unit — Overall: 26.4" (W) × 15.75" (H) (67cm × 40cm)
• Cover Plate (Outer Panel): 22.83" (W) × 13.78" (H) (58cm × 35cm)
• Control Panel (Inner Panel): 15.75" (W) × 7.87" (H) (40cm × 20cm)
• Internal Cut-out Size: Approx. 11.75" (W) × 7.5" (H) | Verify with included template before cutting
• Weight: 53 lbs | Lightweight Aluminum Chassis
• Refrigerant: R134a (Pre-Charged)

The X700 is designed for a professional, flush-mount finish. We understand that every van build has a different ceiling thickness, which is why this kit is uniquely versatile.

• Optional Trim Bezel Included: Every unit comes with an optional interior trim piece to cover gap variances between your ceiling material and the AC unit.

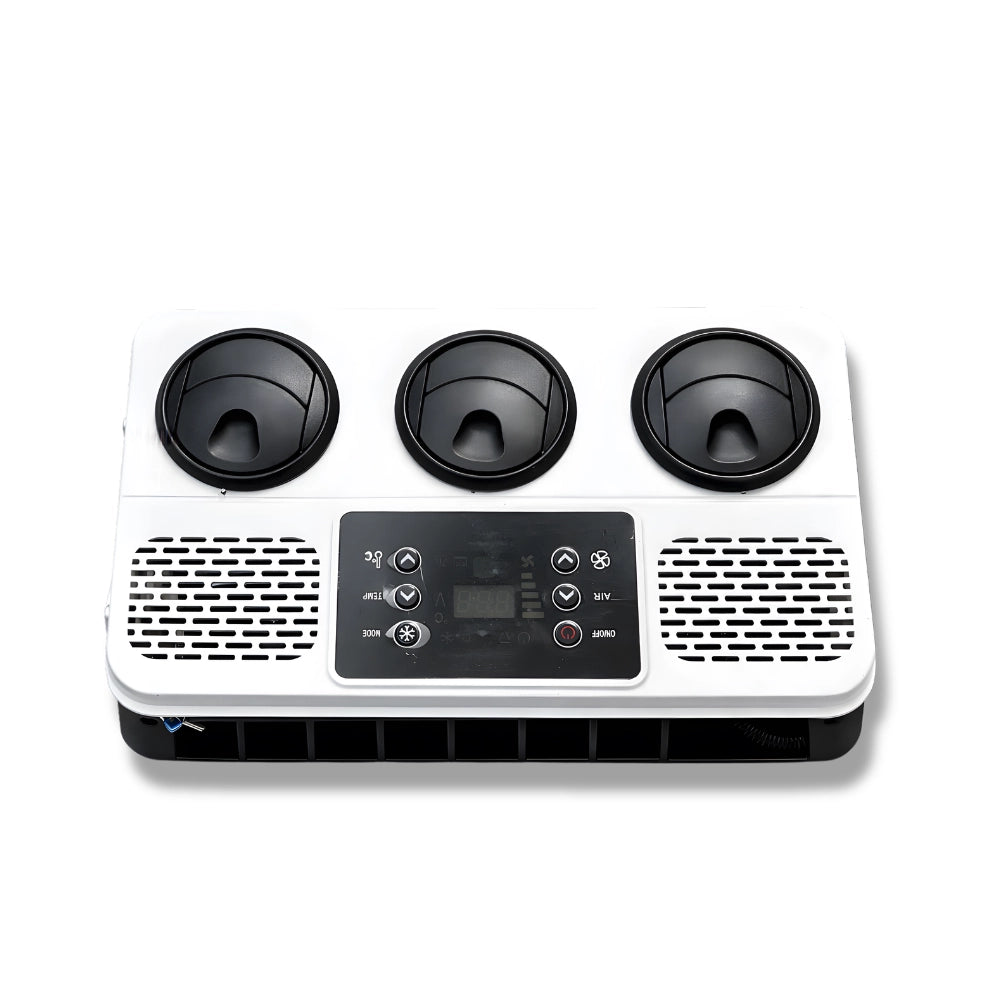

• Headroom Maximized: The internal control panel is engineered for a flush design, making it ideal for high-traffic areas inside the van.

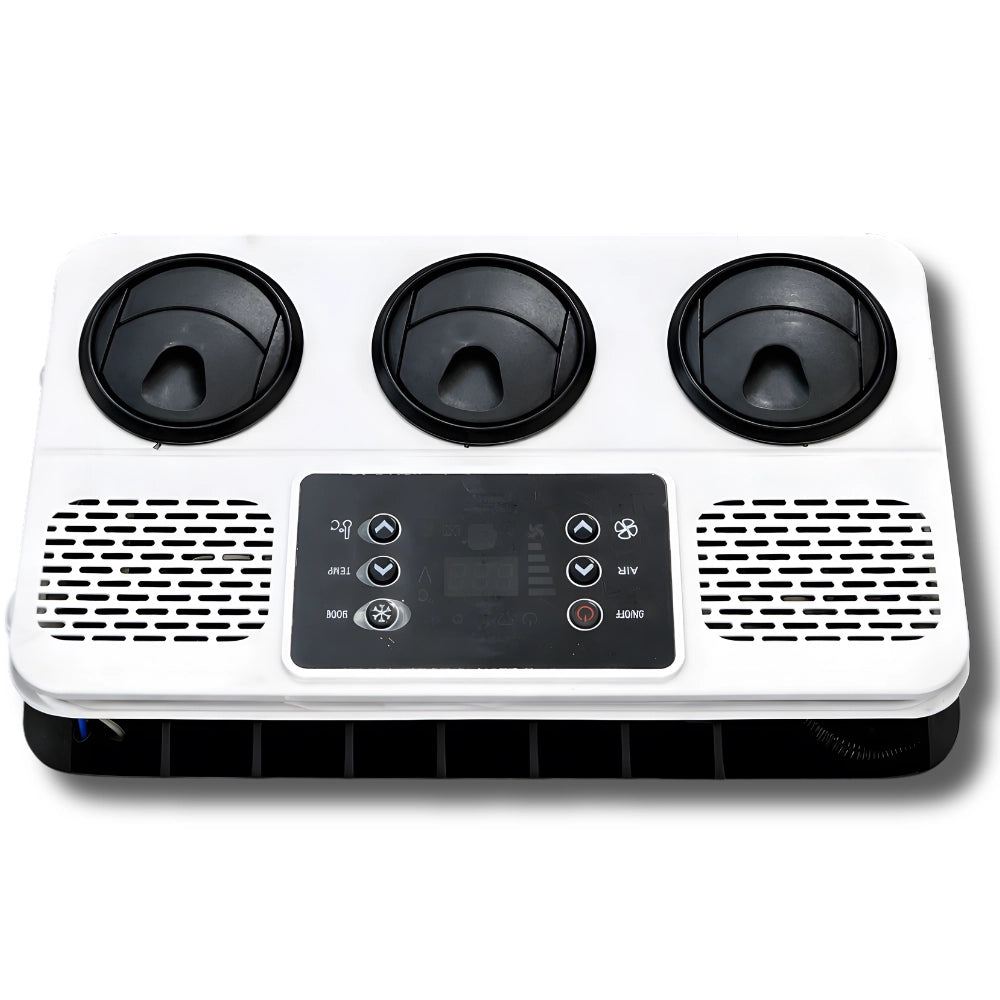

• Adjustable Airflow: Features three 360-degree adjustable vents to direct cooling exactly where you need it.

Note: Professional installation is highly recommended to ensure a watertight seal and proper electrical gauge wiring.

• Voltage: 12V DC (Direct Battery Connection)
• Current Draw: 70A Rated (Max)
• Recommended Battery: 200Ah+ LiFePO4 for optimal performance.
• Safety: Integrated Low-Voltage Cut-off to protect your battery bank.

• 1 × Cryonex X700 12V External AC Unit
• 1 × Flush-Mount Internal Control Plenum
• 1 × Optional Interior Trim Bezel (For a seamless finish)
• 1 × Wireless Remote Control
• 1 × Full Mounting Hardware & Gasket Kit
